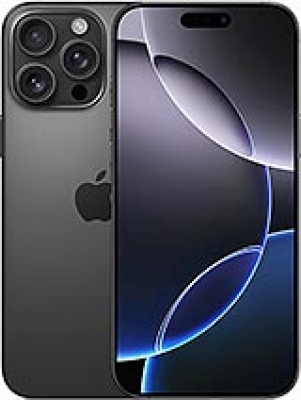

Apple iPhone 16 Pro Max
Available. Released 2024, September 20
227g, 8.3mm thickness
6.9" - 1320 x 2868 pixels
iOS 18, upgradable to iOS 18.3.2
Apple A18 Pro (3 nm)
256GB 8GB RAM, 512GB 8GB RAM, 1TB 8GB RAM
Li-Ion 4685 mAh
Wired, PD2.0, 50% in 30 min 25W wireless (MagSafe), 15W wireless (China only) 15W wireless (Qi2) 4.5W reverse wired
6.9" - 1320 x 2868 pixels
iOS 18, upgradable to iOS 18.3.2
Apple A18 Pro (3 nm)
256GB 8GB RAM, 512GB 8GB RAM, 1TB 8GB RAM
Li-Ion 4685 mAh
Wired, PD2.0, 50% in 30 min 25W wireless (MagSafe), 15W wireless (China only) 15W wireless (Qi2) 4.5W reverse wired
Launch
Announced :
2024, September 09
Status :
Available. Released 2024, September 20
Network
Technology :
GSM / CDMA / HSPA / EVDO / LTE / 5G
Speed :
HSPA, LTE, 5G, EV-DO Rev.A 3.1 Mbps
2G bands :
GSM 850 / 900 / 1800 / 1900
CDMA 800 / 1900
3G bands :
HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100
4G bands :
1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 30, 32, 34, 38, 39, 40, 41, 42, 48, 53, 66 - A3296
5G bands :
1, 2, 3, 5, 7, 8, 12, 20, 25, 26, 28, 30, 38, 40, 41, 48, 53, 66, 70, 75, 76, 77, 78, 79 SA/NSA/Sub6 - A3296
Body
Dimensions :
163 x 77.6 x 8.3 mm (6.42 x 3.06 x 0.33 in)
Weight :
227 g (8.01 oz)
SIM :
Nano-SIM + eSIM + eSIM (max 2 at a time; International)eSIM + eSIM (8 or more, max 2 at a time; USA)Nano-SIM + Nano-SIM (China)
Build :
Glass front, glass back, titanium frame (grade 5)
IP68 dust tight and water resistant (immersible up to 6m for 30 min)
Apple Pay (Visa, MasterCard, AMEX certified)
Display
Type :
LTPO Super Retina XDR OLED, 120Hz, HDR10, Dolby Vision, 1000 nits (typ), 2000 nits (HBM)
Size :
6.9 inches, 115.6 cm2 (~91.4% screen-to-body ratio)
Resolution :
1320 x 2868 pixels, 19.5:9 ratio (~460 ppi density)
Protection :
Ceramic Shield glass (2024 gen)
Always-On display
Platform
OS :
iOS 18, upgradable to iOS 18.3.2
Chipset :
Apple A18 Pro (3 nm)
CPU :
Hexa-core (2x4.05 GHz + 4x2.42 GHz)
GPU :
Apple GPU (6-core graphics)
Memory
Card Slot :
No
Internal :
256GB 8GB RAM, 512GB 8GB RAM, 1TB 8GB RAM
NVMe
Sound
Loudspeaker :
Yes, with stereo speakers
3.5mm Jack :
No
Comms
WLAN :
Wi-Fi 802.11 a/b/g/n/ac/6e/7, tri-band, hotspot
Bluetooth :
5.3, A2DP, LE
NFC :
Yes
Radio :
No
USB :
USB Type-C 3.2 Gen 2, DisplayPort
Positioning :
GPS (L1+L5), GLONASS, GALILEO, BDS, QZSS, NavIC
Features
Sensors :
Face ID, accelerometer, gyro, proximity, compass, barometer
Ultra Wideband (UWB) support (gen2 chip)
Emergency SOS, Messages and Find My via satellite
Battery
Type :
Li-Ion 4685 mAh
Charging :
Wired, PD2.0, 50% in 30 min
25W wireless (MagSafe), 15W wireless (China only)
15W wireless (Qi2)
4.5W reverse wired
Misc
Colors :
Black Titanium, White Titanium, Natural Titanium, Desert Titanium
SAR EU :
1.22 W/kg (head) 1.45 W/kg (body)
Models :
A3296, A3084, A3295, A3297, iPhone17,2
SAR :
1.01 W/kg (head) 1.15 W/kg (body)
Price :
€?1,253.99 / $?1,015.94 / £?1,024.99
Main Camera
Features :
Dual-LED dual-tone flash, HDR (photo/panorama)
Video :
4K@24/25/30/60/100/120fps, 1080p@25/30/60/120/240fps, 10-bit HDR, Dolby Vision HDR (up to 60fps), ProRes, 3D (spatial) video/audio, stereo sound rec.
Triple :
48 MP, f/1.8, 24mm (wide), 1/1.28", 1.22µm, dual pixel PDAF, sensor-shift OIS
12 MP, f/2.8, 120mm (periscope telephoto), 1/3.06", 1.12µm, dual pixel PDAF, 3D sensor?shift OIS, 5x optical zoom
48 MP, f/2.2, 13mm (ultrawide), 1/2.55", 0.7µm, PDAF
TOF 3D LiDAR scanner (depth)
Selfie camera
Single :
12 MP, f/1.9, 23mm (wide), 1/3.6", 1.0µm, PDAF, OIS
SL 3D, (depth/biometrics sensor)
Features :
HDR, Dolby Vision HDR, 3D (spatial) audio, stereo sound rec.
Video :
4K@24/25/30/60fps, 1080p@25/30/60/120fps, gyro-EIS
Tests
Performance :
AnTuTu: 1838828 (v10)
GeekBench: 8606 (v6)
3DMark: 4731 (Wild Life Extreme)
Display :
1796 nits max brightness (measured)
Loudspeaker :
-24.4 LUFS (Very good)
Battery (new) :
Active use score 17:18h
