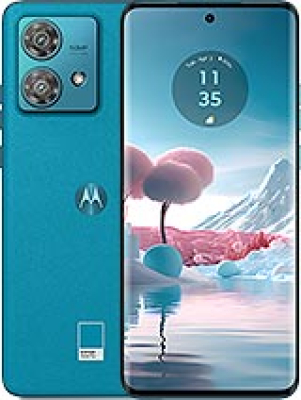

Motorola Edge 40 Neo
Available. Released 2023, September 14
170g, 7.9mm thickness
6.55" - 1080 x 2400 pixels
Android 13, up to 2 major Android upgrades
MediaTek Dimensity 7030 (6 nm)
128GB 8GB RAM, 256GB 8GB RAM, 256GB 12GB RAM
Li-Po 5000 mAh
68W wired, 50% in 15 min
6.55" - 1080 x 2400 pixels
Android 13, up to 2 major Android upgrades
MediaTek Dimensity 7030 (6 nm)
128GB 8GB RAM, 256GB 8GB RAM, 256GB 12GB RAM
Li-Po 5000 mAh
68W wired, 50% in 15 min
Launch
Announced :
2023, September 14
Status :
Available. Released 2023, September 14
Network
Technology :
GSM / HSPA / LTE / 5G
Speed :
HSPA, LTE, 5G
2G bands :
GSM 850 / 900 / 1800 / 1900
3G bands :
HSDPA 800 / 850 / 900 / 1700(AWS) / 1900 / 2100
4G bands :
1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 32, 38, 38, 39, 40, 41, 42, 43, 48, 66
5G bands :
1, 2, 3, 5, 7, 8, 20, 28, 38, 40, 41, 66, 77, 78 SA/NSA
Body
Dimensions :
159.6 x 72 x 7.9 mm (6.28 x 2.83 x 0.31 in)
Weight :
170 g or 172 g (6.00 oz)
SIM :
Nano-SIM + eSIMNano-SIM + Nano-SIM
Build :
Glass front (Gorilla Glass 3), plastic frame, plastic back
IP68 dust tight and water resistant (immersible up to 1.5m for 30 min)
Display
Type :
P-OLED, 1B colors, 144Hz, HDR10+, 1300 nits (peak)
Size :
6.55 inches, 103.6 cm2 (~90.1% screen-to-body ratio)
Resolution :
1080 x 2400 pixels, 20:9 ratio (~402 ppi density)
Protection :
Corning Gorilla Glass 3
Platform
OS :
Android 13, up to 2 major Android upgrades
Chipset :
MediaTek Dimensity 7030 (6 nm)
CPU :
Octa-core (2x2.5 GHz Cortex-A78 & 6x2.0 GHz Cortex-A55)
GPU :
Mali-G610 MC3
Memory
Card Slot :
No
Internal :
128GB 8GB RAM, 256GB 8GB RAM, 256GB 12GB RAM
uMCP
Sound
Loudspeaker :
Yes, with stereo speakers
3.5mm Jack :
No
Comms
WLAN :
Wi-Fi 802.11 a/b/g/n/ac/6e, tri-band, Wi-Fi Direct
Bluetooth :
5.4, A2DP, LE
NFC :
Yes
Radio :
No
USB :
USB Type-C 2.0, OTG
Positioning :
GPS, GLONASS, GALILEO
Features
Sensors :
Fingerprint (under display, optical), accelerometer, gyro, proximity, compass
Smart Connect (Ready For) support
Battery
Type :
Li-Po 5000 mAh
Charging :
68W wired, 50% in 15 min
Misc
Colors :
Black, Soothing Sea, Caneel Bay, Peach Fuzz
Models :
XT2307-1
Price :
$ 267.50 / € 237.90 / £ 249.99
Main Camera
Dual :
50 MP, f/1.8, (wide), 1/1.55", 1.0µm, multi-directional PDAF, OIS
13 MP, f/2.2, 120˚ (ultrawide), 1/3.0", 1.12µm, PDAF
Features :
LED flash, HDR, panorama
Video :
4K@30fps, 1080p@30/60/120/240fps, gyro-EIS
Selfie camera
Single :
32 MP, f/2.4, (wide), 1/3.0", 0.7µm
Features :
HDR
Video :
4K@30fps, 1080p@30fps
Tests
Performance :
AnTuTu: 511077 (v9), 524597 (v10)
GeekBench: 2563 (v5), 2563 (v6)
GFXBench: 23fps (ES 3.1 onscreen)
Display :
1073 nits max brightness (measured)
Camera :
Photo / Video
Loudspeaker :
-23.8 LUFS (Very good)
Battery (old) :
Endurance rating 80h
Battery (new) :
Active use score 10:28h
