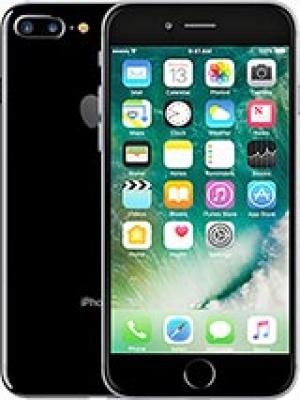

Apple iPhone 7 Plus
Discontinued
188g, 7.3mm thickness
5.5" - 1080 x 1920 pixels
iOS 10.0.1, upgradable to iOS 15.8.1
Apple A10 Fusion (16 nm)
32GB 3GB RAM, 128GB 3GB RAM, 256GB 3GB RAM
Li-Ion 2900 mAh, non-removable (11.1 Wh)
5.5" - 1080 x 1920 pixels
iOS 10.0.1, upgradable to iOS 15.8.1
Apple A10 Fusion (16 nm)
32GB 3GB RAM, 128GB 3GB RAM, 256GB 3GB RAM
Li-Ion 2900 mAh, non-removable (11.1 Wh)
Launch
Announced :
2016, September 07. Released 2016, September 16
Status :
Discontinued
Network
Technology :
GSM / CDMA / HSPA / EVDO / LTE
Speed :
HSPA 42.2/5.76 Mbps, LTE (3CA) Cat9 450/50 Mbps, EV-DO Rev.A 3.1 Mbps
2G bands :
GSM 850 / 900 / 1800 / 1900 - A1661, A1784
CDMA 800 / 1900 / 2100 - A1661
3G bands :
HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100 - A1661, A1784
4G bands :
1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 27, 28, 29, 30, 38, 39, 40, 41 - A1661, A1784
Body
Dimensions :
158.2 x 77.9 x 7.3 mm (6.23 x 3.07 x 0.29 in)
Weight :
188 g (6.63 oz)
SIM :
Nano-SIM
Build :
Glass front (Corning-made glass), aluminum back, aluminum frame
IP67 dust/water resistant (up to 1m for 30 min)
Apple Pay (Visa, MasterCard, AMEX certified)
Display
Type :
Retina IPS LCD, 625 nits (typ)
Size :
5.5 inches, 83.4 cm2 (~67.7% screen-to-body ratio)
Resolution :
1080 x 1920 pixels, 16:9 ratio (~401 ppi density)
Protection :
Ion-strengthened glass
3D Touch display & home button
Platform
OS :
iOS 10.0.1, upgradable to iOS 15.8.1
Chipset :
Apple A10 Fusion (16 nm)
CPU :
Quad-core 2.34 GHz (2x Hurricane + 2x Zephyr)
GPU :
PowerVR Series7XT Plus (six-core graphics)
Memory
Card Slot :
No
Internal :
32GB 3GB RAM, 128GB 3GB RAM, 256GB 3GB RAM
NVMe
Sound
Loudspeaker :
Yes, with stereo speakers
3.5mm Jack :
No
Comms
WLAN :
Wi-Fi 802.11 a/b/g/n/ac, dual-band, hotspot
Bluetooth :
4.2, A2DP, LE
NFC :
Yes
Radio :
No
USB :
Lightning, USB 2.0
Positioning :
GPS, GLONASS, GALILEO, QZSS
Features
Sensors :
Fingerprint (front-mounted), accelerometer, gyro, proximity, compass, barometer
Battery
Stand-by :
Up to 384 h (3G)
Talk time :
Up to 21 h (3G)
Type :
Li-Ion 2900 mAh, non-removable (11.1 Wh)
Misc
Colors :
Jet Black, Black, Silver, Gold, Rose Gold, Red
SAR EU :
1.24 W/kg (head) 1.00 W/kg (body)
Models :
A1661, A1784, A1785, A1786, iPhone9,4, iPhone9,2
SAR :
1.19 W/kg (head) 1.19 W/kg (body)
Price :
About 320 EUR
Main Camera
Dual :
12 MP, f/1.8, 28mm (wide), 1/3.0", PDAF, OIS
12 MP, f/2.8, 56mm (telephoto), 1/3.6", AF, 2x optical zoom
Features :
Quad-LED dual-tone flash, HDR
Video :
4K@30fps, 1080p@30/60/120fps, 720p@240fps
Selfie camera
Single :
7 MP, f/2.2, 32mm (standard)
Features :
Face detection, HDR
Video :
1080p@30fps
Tests
Performance :
Basemark OS II 2.0: 3796
Display :
Contrast ratio: 1398:1 (nominal), 3.588 (sunlight)
Camera :
Photo / Video
Loudspeaker :
Voice 68dB / Noise 72dB / Ring 72dB
Battery (old) :
Endurance rating 75h
Audio quality :
Noise -93.1dB / Crosstalk -80.5dB
