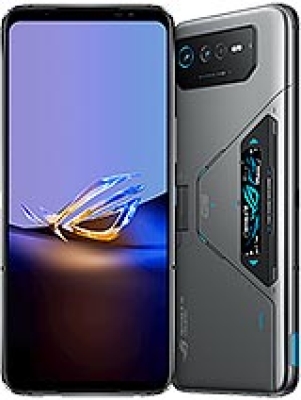

Asus ROG Phone 6D Ultimate
Available. Released 2022, October 07
247g, 10.4mm thickness
6.78" - 1080 x 2448 pixels
Android 12
Mediatek Dimensity 9000+ (4 nm)
512GB 16GB RAM
Li-Po 6000 mAh
65W wired, PD3.0 10W reverse wired
6.78" - 1080 x 2448 pixels
Android 12
Mediatek Dimensity 9000+ (4 nm)
512GB 16GB RAM
Li-Po 6000 mAh
65W wired, PD3.0 10W reverse wired
Launch
Announced :
2022, September 19
Status :
Available. Released 2022, October 07
Network
Technology :
GSM / CDMA / HSPA / LTE / 5G
Speed :
HSPA 42.2/11.5 Mbps, LTE (5CA) Cat19 1600/210 Mbps, 5G
2G bands :
GSM 850 / 900 / 1800 / 1900
CDMA 800 - B version
3G bands :
HSDPA 800 / 850 / 900 / 1700(AWS) / 1900 / 2100
4G bands :
1, 2, 3, 4, 5, 7, 8, 12, 17, 18, 19, 20, 26, 28, 32, 34, 38, 39, 40, 41, 42, 43, 48 - A version
5G bands :
1, 2, 3, 5, 7, 8, 12, 18, 20, 26, 28, 38, 40, 41, 48, 77, 78, 79 SA/NSA/Sub6 - A version
Body
Dimensions :
173 x 77 x 10.4 mm (6.81 x 3.03 x 0.41 in)
Weight :
247 g (8.71 oz)
SIM :
Nano-SIM + Nano-SIM
Build :
Glass front (Gorilla Glass Victus), glass back (Gorilla Glass 3), aluminum frame
Built-in motorized cooling air vent (AeroActive Portal)
IPX4 water resistant
2" OLED display (on the back)
Pressure sensitive zones (Gaming triggers)
Display
Type :
AMOLED, 1B colors, 165Hz, HDR10+, 800 nits (typ), 1200 nits (peak)
Size :
6.78 inches, 109.5 cm2 (~82.2% screen-to-body ratio)
Resolution :
1080 x 2448 pixels (~395 ppi density)
Protection :
Corning Gorilla Glass Victus
Platform
OS :
Android 12
Chipset :
Mediatek Dimensity 9000+ (4 nm)
CPU :
Octa-core (1x3.35 GHz Cortex-X2 & 3x2.85 GHz Cortex-A710 & 4x1.80 GHz Cortex-A510)
GPU :
Mali-G710 MC10
Memory
Card Slot :
No
Internal :
512GB 16GB RAM
UFS 3.1
NTFS support for external storage
Sound
Loudspeaker :
Yes, with stereo speakers (2 amplifiers)
3.5mm Jack :
Yes
24-bit/192kHz Hi-Res audio
Comms
WLAN :
Wi-Fi 802.11 a/b/g/n/ac/6e, tri-band, Wi-Fi Direct
Bluetooth :
5.3, A2DP, LE, aptX HD, aptX Adaptive
NFC :
Yes
Radio :
No
USB :
USB Type-C 3.1 (side), USB Type-C 2.0 (bottom), OTG, accessory connector
Positioning :
GPS (L1+L5), GLONASS (L1), BDS (B1I+B1c+B2a), GALILEO (E1+E5a), QZSS (L1), NavIC (L5)
Features
Sensors :
Fingerprint (under display, optical), accelerometer, gyro, proximity, compass
Battery
Type :
Li-Po 6000 mAh
Charging :
65W wired, PD3.0
10W reverse wired
Misc
Colors :
Space Gray
Models :
AI2203, AI2203-3E010EU
Price :
About 1100 EUR
Main Camera
Features :
LED flash, HDR, panorama
Video :
8K@24fps, 4K@30/60fps, 1080p@30/60/120/240fps, 720p@480fps; gyro-EIS, HDR10+
Triple :
50 MP, f/1.9, 24mm (wide), 1/1.56", 1.0µm, PDAF
13 MP, f/2.2, 13mm (ultrawide)
5 MP, (macro)
Selfie camera
Single :
12 MP, 28mm (wide)
Features :
Panorama, HDR
Video :
1080p@30fps
Tests
Performance :
AnTuTu: 1107464 (v9)
GeekBench: 4575 (v5.1)
GFXBench: 68fps (ES 3.1 onscreen)
Display :
Contrast ratio: Infinite (nominal)
Camera :
Photo / Video
Loudspeaker :
-24.1 LUFS (Very good)
Battery (old) :
Endurance rating 103h
