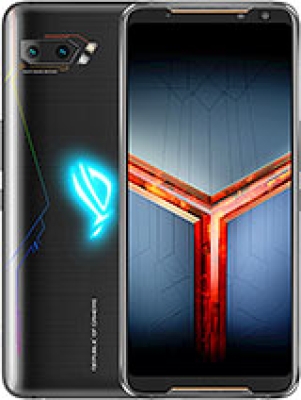

Asus ROG Phone II ZS660KL
Available. Released 2019, September
240g, 9.5mm thickness
6.59" - 1080 x 2340 pixels
Android 9.0 (Pie), ROG UI
Qualcomm SM8150 Snapdragon 855+ (7 nm)
128GB 8GB RAM, 256GB 12GB RAM, 512GB 12GB RAM, 1TB 12GB RAM
Li-Po 6000 mAh, non-removable
30W wired 10W reverse wired, QC4
6.59" - 1080 x 2340 pixels
Android 9.0 (Pie), ROG UI
Qualcomm SM8150 Snapdragon 855+ (7 nm)
128GB 8GB RAM, 256GB 12GB RAM, 512GB 12GB RAM, 1TB 12GB RAM
Li-Po 6000 mAh, non-removable
30W wired 10W reverse wired, QC4
Launch
Announced :
2019, July 22
Status :
Available. Released 2019, September
Network
Technology :
GSM / HSPA / LTE
Speed :
HSPA 42.2/5.76 Mbps, LTE (5CA) Cat18 (Cat20 Ultimate edition) 1200/150 Mbps
2G bands :
GSM 850 / 900 / 1800 / 1900
3G bands :
HSDPA 850 / 900 / 1900 / 2100
4G bands :
1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 28, 29, 32, 34, 38, 39, 40, 41, 46
Body
Dimensions :
171 x 77.6 x 9.5 mm (6.73 x 3.06 x 0.37 in)
Weight :
240 g (8.47 oz)
SIM :
Nano-SIM + Nano-SIM
Build :
Glass front (Gorilla Glass 6), glass back (Gorilla Glass 3), aluminum frame
RGB light panel (on the back)
Display
Type :
AMOLED, 1B colors, 120Hz, HDR10
Size :
6.59 inches, 106.6 cm2 (~80.3% screen-to-body ratio)
Resolution :
1080 x 2340 pixels, 19.5:9 ratio (~391 ppi density)
Protection :
Corning Gorilla Glass 6
Platform
OS :
Android 9.0 (Pie), ROG UI
Chipset :
Qualcomm SM8150 Snapdragon 855+ (7 nm)
CPU :
Octa-core (1x2.96 GHz Kryo 485 & 3x2.42 GHz Kryo 485 & 4x1.78 GHz Kryo 485)
GPU :
Adreno 640 (700 MHz)
Memory
Card Slot :
No
Internal :
128GB 8GB RAM, 256GB 12GB RAM, 512GB 12GB RAM, 1TB 12GB RAM
UFS 3.0
Sound
Loudspeaker :
Yes, with DTS:X stereo speakers (2 dedicated amplifiers)
3.5mm Jack :
Yes
24-bit/192kHz Hi-Res audio
Comms
WLAN :
Wi-Fi 802.11 a/b/g/n/ac/ad, dual-band, Wi-Fi Direct
Bluetooth :
5.0, A2DP, LE, aptX HD
NFC :
Yes
Radio :
FM radio
USB :
USB Type-C 3.1, accessory connector, OTG
Positioning :
GPS (L1+L5), GLONASS, BDS, GALILEO, QZSS
Features
Sensors :
Fingerprint (under display, optical), accelerometer, gyro, proximity, compass
Battery
Type :
Li-Po 6000 mAh, non-removable
Charging :
30W wired
10W reverse wired, QC4
Misc
Colors :
Matte Black, Glossy Black
Models :
ASUS_I001D, I001DA, I001DE, I001DC, I001DB, I001D, I001DD
Price :
About 1070 EUR
Main Camera
Dual :
48 MP, f/1.8, 26mm (wide), 1/2.0", 0.8µm, PDAF
13 MP, f/2.4, 11mm (ultrawide)
Features :
Laser AF, LED flash, HDR, panorama
Video :
4K@30/60fps, 1080p@30/60/240fps, 720p@480fps; gyro-EIS (except @240/480fps)
Selfie camera
Single :
24MP, f/2.2, 0.9µm
Features :
Panorama, HDR
Video :
1080p@30fps
Tests
Performance :
AnTuTu: 398935 (v7), 483239 (v8)
GeekBench: 10923 (v4.4)
GFXBench: 40fps (ES 3.1 onscreen)
Display :
626 nits max brightness (measured)
Camera :
Photo / Video
Loudspeaker :
-19.5 LUFS (Excellent)
Battery (old) :
Endurance rating 114h
