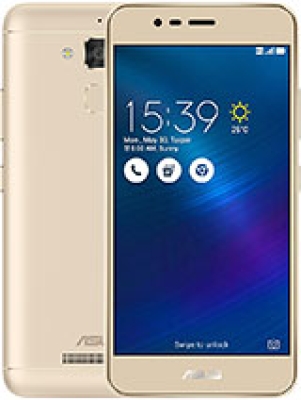

Asus Zenfone 3 Max ZC520TL
Discontinued
148g, 8.6mm thickness
5.2" - 720 x 1280 pixels
Android 6.0.1 (Marshmallow), upgradable to 7.0 (Nougat), ZenUI 3
Mediatek MT6737M (28 nm)
16GB 2GB RAM, 32GB 3GB RAM
Li-Po 4130 mAh, non-removable
Reverse wired
5.2" - 720 x 1280 pixels
Android 6.0.1 (Marshmallow), upgradable to 7.0 (Nougat), ZenUI 3
Mediatek MT6737M (28 nm)
16GB 2GB RAM, 32GB 3GB RAM
Li-Po 4130 mAh, non-removable
Reverse wired
Launch
Announced :
2016, July. Released 2016, August
Status :
Discontinued
Network
Technology :
GSM / HSPA / LTE
Speed :
HSPA 42.2/5.76 Mbps, LTE Cat4 150/50 Mbps
2G bands :
GSM 850 / 900 / 1800 / 1900 - SIM 1 & SIM 2
HSDPA 850 / 900 / 2100 - India
3G bands :
HSDPA 850 / 900 / 1900 / 2100 - Global
4G bands :
1, 2, 3, 4, 5, 7, 8, 18, 19, 26, 28, 38, 41 - Taiwan
Body
Dimensions :
149.5 x 73.7 x 8.6 mm (5.89 x 2.90 x 0.34 in)
Weight :
148 g (5.22 oz)
SIM :
Nano-SIM + Micro-SIM
Build :
Glass front, aluminum back, aluminum frame
Display
Type :
IPS LCD
Size :
5.2 inches, 74.5 cm2 (~67.7% screen-to-body ratio)
Resolution :
720 x 1280 pixels, 16:9 ratio (~282 ppi density)
Platform
OS :
Android 6.0.1 (Marshmallow), upgradable to 7.0 (Nougat), ZenUI 3
Chipset :
Mediatek MT6737M (28 nm)
CPU :
Quad-core 1.25 GHz Cortex-A53
GPU :
Mali-T720MP2
Memory
Card Slot :
microSDHC (uses shared SIM slot)
Internal :
16GB 2GB RAM, 32GB 3GB RAM
eMMC 5.0
Sound
Loudspeaker :
Yes
3.5mm Jack :
Yes
Comms
WLAN :
Wi-Fi 802.11 b/g/n, Wi-Fi Direct
Bluetooth :
4.0, A2DP, EDR
NFC :
No
Radio :
FM radio
USB :
microUSB 2.0, OTG
Positioning :
GPS, GLONASS, BDS
Features
Sensors :
Fingerprint (rear-mounted), accelerometer, proximity, compass
Battery
Stand-by :
Up to 720 h (3G)
Talk time :
Up to 20 h (3G)
Music play :
Up to 87 h
Type :
Li-Po 4130 mAh, non-removable
Charging :
Reverse wired
Misc
Colors :
Titanium Grey, Glacier Silver, Sand Gold
Models :
X008D, X008DA, X008DC, X00KD
Price :
About 230 EUR
Main Camera
Features :
LED flash, panorama, HDR
Video :
1080p@30fps
Single :
13 MP, f/2.2, AF
Selfie camera
Single :
5 MP, f/2.0
