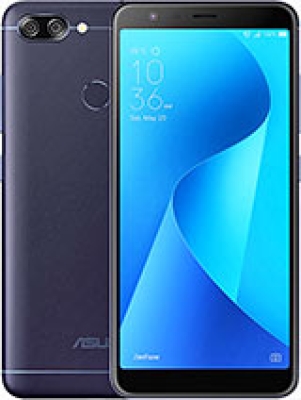

Asus Zenfone Max Plus (M1) ZB570TL
Available. Released 2017, December
160g, 8.8mm thickness
5.7" - 1080 x 2160 pixels
Android 7 (Nougat), ZenUI 4
Mediatek MT6750T (28 nm)
16GB 2GB RAM, 32GB 3GB RAM, 64GB 4GB RAM
Li-Po 4130 mAh, non-removable
10W wired Reverse wired
5.7" - 1080 x 2160 pixels
Android 7 (Nougat), ZenUI 4
Mediatek MT6750T (28 nm)
16GB 2GB RAM, 32GB 3GB RAM, 64GB 4GB RAM
Li-Po 4130 mAh, non-removable
10W wired Reverse wired
Launch
Announced :
2017, November
Status :
Available. Released 2017, December
Network
Technology :
GSM / CDMA / HSPA / LTE
Speed :
HSPA 42.2/5.76 Mbps, LTE Cat4 150/50 Mbps
2G bands :
GSM 850 / 900 / 1800 / 1900 - SIM 1 & SIM 2
CDMA 800 & TD-SCDMA - China
3G bands :
HSDPA 850 / 900 / 1900 / 2100 - Global, China
4G bands :
1, 2, 3, 5, 7, 8, 20, 40 - Global
Body
Dimensions :
152.6 x 73 x 8.8 mm (6.01 x 2.87 x 0.35 in)
Weight :
160 g (5.64 oz)
SIM :
Nano-SIM + Nano-SIM
Build :
Glass front, aluminum back, aluminum frame
Display
Type :
IPS LCD
Size :
5.7 inches, 83.8 cm2 (~75.3% screen-to-body ratio)
Resolution :
1080 x 2160 pixels, 18:9 ratio (~424 ppi density)
Platform
OS :
Android 7 (Nougat), ZenUI 4
Chipset :
Mediatek MT6750T (28 nm)
CPU :
Octa-core (4x1.5 GHz Cortex-A53 & 4x1.0 GHz Cortex-A53)
GPU :
Mali-T860MP2
Memory
Card Slot :
microSDXC (dedicated slot)
Internal :
16GB 2GB RAM, 32GB 3GB RAM, 64GB 4GB RAM
eMMC 5.1
Sound
Loudspeaker :
Yes
3.5mm Jack :
Yes
Comms
WLAN :
Wi-Fi 802.11 b/g/n, Wi-Fi Direct
Bluetooth :
4.0, A2DP, LE
NFC :
No
Radio :
FM radio
USB :
microUSB 2.0, OTG
Positioning :
GPS, GLONASS
Features
Sensors :
Fingerprint (rear-mounted), accelerometer, gyro, proximity, compass
Battery
Type :
Li-Po 4130 mAh, non-removable
Charging :
10W wired
Reverse wired
Misc
Colors :
Sunlight Gold, Azure Silver, Deepsea Black
Models :
X018D
Price :
About 250 EUR
Main Camera
Dual :
16 MP, f/2.0, 35mm (standard), PDAF
8 MP, 17mm (ultrawide), no AF
Features :
LED flash, HDR, panorama
Video :
1080p@30fps
Selfie camera
Single :
8 MP, f/2.0, 25mm (wide)
