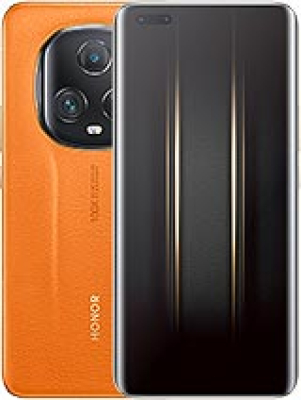

Honor Magic5 Ultimate
Available. Released 2023, March 20
217g, 8.8mm thickness
6.81" - 1312 x 2848 pixels
Android 13, MagicOS 7.1
Qualcomm SM8550-AB Snapdragon 8 Gen 2 (4 nm)
512GB 16GB RAM
Si/C Li-Ion 5450 mAh
66W wired 50W wireless Reverse wireless 5W reverse wired
6.81" - 1312 x 2848 pixels
Android 13, MagicOS 7.1
Qualcomm SM8550-AB Snapdragon 8 Gen 2 (4 nm)
512GB 16GB RAM
Si/C Li-Ion 5450 mAh
66W wired 50W wireless Reverse wireless 5W reverse wired
Launch
Announced :
2023, March 06
Status :
Available. Released 2023, March 20
Network
Technology :
GSM / CDMA / HSPA / EVDO / LTE / 5G
Speed :
HSPA, LTE, 5G
2G bands :
GSM 850 / 900 / 1800 / 1900
CDMA 800
3G bands :
HSDPA 800 / 850 / 900 / 1700(AWS) / 1900 / 2100
4G bands :
1, 2, 3, 4, 5, 7, 8, 12, 17, 18, 19, 20, 26, 28, 34, 38, 39, 40, 41
5G bands :
1, 3, 5, 8, 28, 38, 41, 77, 78, 79 SA/NSA
Body
Dimensions :
162.9 x 76.7 x 8.8 mm (6.41 x 3.02 x 0.35 in)
Weight :
217 g (7.65 oz)
SIM :
Nano-SIM + Nano-SIM
Build :
Glass front, eco leather back
IP68 dust tight and water resistant (immersible up to 1.5m for 30 min)
Display
Type :
LTPO OLED, 1B colors, 120Hz, HDR10+, 1800 nits (peak)
Size :
6.81 inches, 113.7 cm2 (~91.0% screen-to-body ratio)
Resolution :
1312 x 2848 pixels, 19.5:9 ratio (~460 ppi density)
Protection :
Glass/ceramic coating
Platform
OS :
Android 13, MagicOS 7.1
Chipset :
Qualcomm SM8550-AB Snapdragon 8 Gen 2 (4 nm)
CPU :
Octa-core (1x3.2 GHz Cortex-X3 & 2x2.8 GHz Cortex-A715 & 2x2.8 GHz Cortex-A710 & 3x2.0 GHz Cortex-A510)
GPU :
Adreno 740
Memory
Card Slot :
No
Internal :
512GB 16GB RAM
UFS 4.0
Sound
Loudspeaker :
Yes, with stereo speakers
3.5mm Jack :
No
24-bit audio stereo recording
Comms
WLAN :
Wi-Fi 802.11 a/b/g/n/ac/6e, dual-band, Wi-Fi Direct
Bluetooth :
5.2, A2DP, LE, aptX HD
NFC :
Yes, HCE, NFC-SIM
Radio :
No
USB :
USB Type-C 3.1, DisplayPort 1.2, OTG
Positioning :
GPS (L1+L5), GLONASS (L1), BDS (B1I+B1c+B2a), GALILEO (E1+E5a)
Infrared port :
Yes
Features
Sensors :
Fingerprint (under display, ultrasonic), Face ID, accelerometer, gyro, proximity, compass
Ultra Wideband (UWB) support
Battery
Type :
Si/C Li-Ion 5450 mAh
Charging :
66W wired
50W wireless
Reverse wireless
5W reverse wired
Misc
Colors :
Black, Orange
Models :
PGT-AN20
Price :
About 900 EUR
Main Camera
Features :
Laser AF, color spectrum sensor, LED flash, HDR, panorama
Video :
4K@30/60fps, 1080p@30/60fps, gyro-EIS, HDR10, 10-bit video
Triple :
50 MP, f/1.6, 23mm (wide), 1/1.12" 1.4µm, multi-directional PDAF, OIS
50 MP, f/3.0, 90mm (periscope telephoto), PDAF, OIS, 3.5x optical zoom
50 MP, f/2.0, 13mm, 122˚ (ultrawide), 1/2.5", AF
TOF 3D (depth)
Selfie camera
Single :
12 MP, f/2.4, 100˚ (ultrawide), 1.22µm
TOF 3D, (depth/biometrics sensor)
Features :
HDR
Video :
4K@30fps, 1080p@30/60fps
