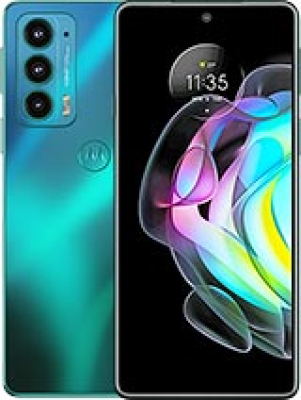

Motorola Edge 20
Available. Released 2021, August 16
163g, 7mm thickness
6.7" - 1080 x 2400 pixels
Android 11, upgradable to Android 13
Qualcomm SM7325 Snapdragon 778G 5G (6 nm)
128GB 6GB RAM, 128GB 8GB RAM, 256GB 8GB RAM
Li-Po 4000 mAh
30W wired
6.7" - 1080 x 2400 pixels
Android 11, upgradable to Android 13
Qualcomm SM7325 Snapdragon 778G 5G (6 nm)
128GB 6GB RAM, 128GB 8GB RAM, 256GB 8GB RAM
Li-Po 4000 mAh
30W wired
Launch
Announced :
2021, July 29
Status :
Available. Released 2021, August 16
Network
Technology :
GSM / HSPA / LTE / 5G
Speed :
HSPA 42.2/5.76 Mbps, LTE (CA) Cat18 1200/150 Mbps, 5G
2G bands :
GSM 850 / 900 / 1800 / 1900
3G bands :
HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100
4G bands :
1, 2, 3, 4, 5, 7, 8, 12, 18, 19, 20, 26, 28, 32, 34, 38, 39, 40, 41, 42, 43, 66
5G bands :
1, 3, 5, 7, 8, 28, 38, 41, 66, 77, 78 SA/NSA/Sub6
Body
Dimensions :
163 x 76 x 7 mm (6.42 x 2.99 x 0.28 in)
Weight :
163 g (5.75 oz)
SIM :
Nano-SIM + Nano-SIM
Build :
Glass front (Gorilla Glass 5), aluminum frame, glass back (Gorilla Glass 3)
Water-repellent design
Display
Type :
OLED, 1B colors, 144Hz, HDR10+
Size :
6.7 inches, 110.2 cm2 (~89.0% screen-to-body ratio)
Resolution :
1080 x 2400 pixels, 19.5:9 ratio (~385 ppi density)
Protection :
Corning Gorilla Glass 5
Platform
OS :
Android 11, upgradable to Android 13
Chipset :
Qualcomm SM7325 Snapdragon 778G 5G (6 nm)
CPU :
Octa-core (1x2.4 GHz Cortex-A78 & 3x2.2 GHz Cortex-A78 & 4x1.9 GHz Cortex-A55)
GPU :
Adreno 642L
Memory
Card Slot :
No
Internal :
128GB 6GB RAM, 128GB 8GB RAM, 256GB 8GB RAM
UFS
Sound
Loudspeaker :
Yes
3.5mm Jack :
No
Snapdragon Sound
Comms
WLAN :
Wi-Fi 802.11 a/b/g/n/ac/6e, dual-band, Wi-Fi Direct
Bluetooth :
5.2, A2DP, LE, aptX HD, aptX Adaptive
NFC :
Yes
Radio :
No
USB :
USB Type-C 2.0
Positioning :
GPS, GLONASS, BDS, GALILEO
Features
Sensors :
Fingerprint (side-mounted), accelerometer, gyro, proximity, compass
Battery
Type :
Li-Po 4000 mAh
Charging :
30W wired
Misc
Colors :
Frosted Grey, Frosted White, Frosted Emerald
Models :
XT2143-1
Price :
$ 220.00 / € 135.32 / £ 145.81
Main Camera
Features :
Dual-LED dual-tone flash, HDR, panorama
Video :
4K@30fps, 1080p@30/60/120/240fps, 720p@960fps, gyro-EIS
Triple :
108 MP, f/1.9, (wide), 1/1.52", 0.7µm, PDAF
8 MP, f/2.4, 79mm (telephoto), 1.0µm, 3x optical zoom, PDAF, OIS
16 MP, f/2.2, 17mm, 119˚ (ultrawide), 1/3.06", 1.0µm, AF
Selfie camera
Single :
32 MP, f/2.3, (wide), 0.7µm
Features :
HDR
Video :
1080p@30fps
Tests
Performance :
AnTuTu: 424031 (v8), 488574 (v9)
GeekBench: 2550 (v5.1)
GFXBench: 29fps (ES 3.1 onscreen)
Display :
650 nits max brightness (measured)
Camera :
Photo / Video
Loudspeaker :
-28.7 LUFS (Average)
Battery (old) :
Endurance rating 86h
