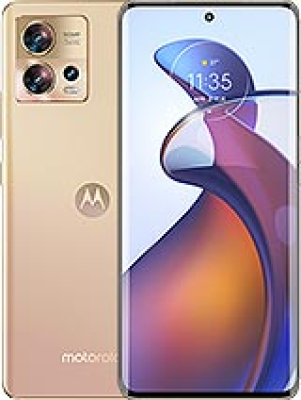

Motorola Edge 30 Fusion
Available. Released 2022, September 08
168g, 7.5mm thickness
6.55" - 1080 x 2400 pixels
Android 12, upgradable to Android 14
Qualcomm SM8350 Snapdragon 888+ 5G (5 nm)
128GB 8GB RAM, 256GB 6GB RAM, 256GB 8GB RAM, 256GB 12GB RAM, 512GB 12GB RAM
Li-Po 4400 mAh
68W wired, 50% in 10 min
6.55" - 1080 x 2400 pixels
Android 12, upgradable to Android 14
Qualcomm SM8350 Snapdragon 888+ 5G (5 nm)
128GB 8GB RAM, 256GB 6GB RAM, 256GB 8GB RAM, 256GB 12GB RAM, 512GB 12GB RAM
Li-Po 4400 mAh
68W wired, 50% in 10 min
Launch
Announced :
2022, September 08
Status :
Available. Released 2022, September 08
Network
Technology :
GSM / CDMA / HSPA / CDMA2000 / LTE / 5G
Speed :
HSPA, LTE (CA), 5G
2G bands :
GSM 850 / 900 / 1800 / 1900
CDMA 800 - PRC
3G bands :
HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100 - International
4G bands :
1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 32, 38, 39, 40, 41, 42, 43, 66 - International
5G bands :
1, 3, 5, 7, 8, 20, 28, 38, 40, 41, 66, 77, 78 SA/NSA - International
Body
Dimensions :
158.5 x 72 x 7.5 mm or 7.7 mm
Weight :
168 g / 175 g (5.93 oz)
SIM :
Nano-SIMNano-SIM + Nano-SIM
Build :
Glass front (Gorilla Glass 5), glass back (Gorilla Glass 5), aluminum frame
Splash and dust resistant
Display
Type :
P-OLED, 1B colors, 144Hz, HDR10+, 1100 nits (peak)
Size :
6.55 inches, 103.6 cm2 (~90.8% screen-to-body ratio)
Resolution :
1080 x 2400 pixels, 20:9 ratio (~402 ppi density)
Protection :
Corning Gorilla Glass 5
Platform
OS :
Android 12, upgradable to Android 14
Chipset :
Qualcomm SM8350 Snapdragon 888+ 5G (5 nm)
CPU :
Octa-core (1x2.99 GHz Cortex-X1 & 3x2.42 GHz Cortex-A78 & 4x1.80 GHz Cortex-A55)
GPU :
Adreno 660
Memory
Card Slot :
No
Internal :
128GB 8GB RAM, 256GB 6GB RAM, 256GB 8GB RAM, 256GB 12GB RAM, 512GB 12GB RAM
UFS 3.1
Sound
Loudspeaker :
Yes, with stereo speakers
3.5mm Jack :
No
Snapdragon Sound
Comms
WLAN :
Wi-Fi 802.11 a/b/g/n/ac/6e, tri-band, Wi-Fi Direct
Bluetooth :
5.2, A2DP, LE, aptX HD, aptX Adaptive
NFC :
Yes
Radio :
No
USB :
USB Type-C 3.1, OTG
Positioning :
GPS (L1+L5), GLONASS, BDS (B1I+B1c), GALILEO
Features
Sensors :
Fingerprint (under display, optical), accelerometer, gyro, proximity, compass
Smart Connect (Ready For) support
Battery
Type :
Li-Po 4400 mAh
Charging :
68W wired, 50% in 10 min
Misc
Colors :
Neptune Blue, Cosmic Grey, Solar Gold, Aurora White, Viva Magenta
Models :
XT2243-1
Price :
$ 565.00 / € 189.84 / £ 231.53 / ₹ 19,799
Main Camera
Features :
LED flash, panorama, HDR
Video :
8K@30fps, 4K@30fps, 1080p@30/60/120fps, 720p@960fps, gyro-EIS
Triple :
50 MP, f/1.8, (wide), 1/1.55", 1.0µm, multi-directional PDAF, OIS
13 MP, f/2.2, 120˚ (ultrawide), 1.12µm, AF
2 MP, f/2.4, (depth)
Selfie camera
Single :
32 MP, f/2.5, (wide), 1/2.8", 0.8µm, AF
Features :
HDR
Video :
4K@30fps, 1080p@30fps
Tests
Performance :
AnTuTu: 827929 (v9)
GeekBench: 3458 (v5.1)
GFXBench: 62fps (ES 3.1 onscreen)
Display :
946 nits max brightness (measured)
Camera :
Photo / Video
Loudspeaker :
-24.6 LUFS (Very good)
Battery (old) :
Endurance rating 101h
