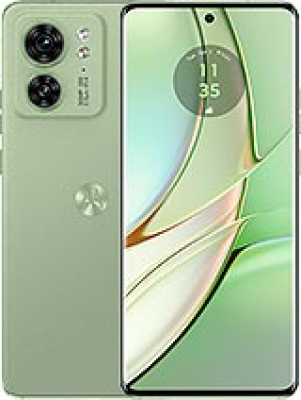

Motorola Edge 40
Available. Released 2023, May 04
167g, 7.6mm thickness
6.55" - 1080 x 2400 pixels
Android 13, up to 2 major Android upgrades
Mediatek Dimensity 8020 (6 nm)
128GB 8GB RAM, 256GB 8GB RAM
Li-Po 4400 mAh
68W wired 15W wireless
6.55" - 1080 x 2400 pixels
Android 13, up to 2 major Android upgrades
Mediatek Dimensity 8020 (6 nm)
128GB 8GB RAM, 256GB 8GB RAM
Li-Po 4400 mAh
68W wired 15W wireless
Launch
Announced :
2023, May 04
Status :
Available. Released 2023, May 04
Network
Technology :
GSM / HSPA / LTE / 5G
Speed :
HSPA, LTE (CA), 5G
2G bands :
GSM 850 / 900 / 1800 / 1900
3G bands :
HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100
4G bands :
1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 20, 26, 28, 32, 38, 39, 40, 41, 42, 43, 66
5G bands :
1, 2, 3, 5, 7, 8, 20, 28, 38, 40, 41, 66, 77, 78 SA/NSA/Sub6
Body
Dimensions :
158.4 x 72 x 7.6 mm (6.24 x 2.83 x 0.30 in)
Weight :
167 g or 171 g (5.89 oz)
SIM :
Nano-SIMNano-SIM + eSIMNano-SIM + Nano-SIM
Build :
Glass front, aluminum frame, plastic back or eco leather back
IP68 dust tight and water resistant (immersible up to 1.5m for 30 min)
Display
Type :
P-OLED, 144Hz, HDR10+, 1200 nits (peak)
Size :
6.55 inches, 103.6 cm2 (~90.8% screen-to-body ratio)
Resolution :
1080 x 2400 pixels, 20:9 ratio (~402 ppi density)
Platform
OS :
Android 13, up to 2 major Android upgrades
Chipset :
Mediatek Dimensity 8020 (6 nm)
CPU :
Octa-core (4x2.6 GHz Cortex-A78 & 4x2.0 GHz Cortex-A55)
GPU :
Mali-G77 MC9
Memory
Card Slot :
No
Internal :
128GB 8GB RAM, 256GB 8GB RAM
UFS 3.1
Sound
Loudspeaker :
Yes, with stereo speakers
3.5mm Jack :
No
Comms
WLAN :
Wi-Fi 802.11 a/b/g/n/ac/6e, tri-band, Wi-Fi Direct
Bluetooth :
5.2, A2DP, LE
NFC :
Yes
Radio :
No
USB :
USB Type-C 2.0, OTG
Positioning :
GPS, GLONASS, GALILEO, BDS
Features
Sensors :
Fingerprint (under display, optical), accelerometer, gyro, proximity, compass
Smart Connect (Ready For) support
Battery
Type :
Li-Po 4400 mAh
Charging :
68W wired
15W wireless
Misc
Colors :
Nebula Green, Lunar Blue, Eclipse Black, Viva Magenta
Models :
XT2303-2
Price :
$ 325.89 / € 183.03 / £ 157.43 / ₹ 17,999
Main Camera
Dual :
50 MP, f/1.4, (wide), 1/1.55", 1.0µm, multi-directional PDAF, OIS
13 MP, f/2.2, 120˚ (ultrawide), 1/3.0", 1.12µm, AF
Features :
Dual-LED flash, HDR, panorama
Video :
4K@30fps, 1080p@30/60/120fps, 720p@960fps, HDR10, gyro-EIS
Selfie camera
Single :
32 MP, f/2.4, (wide), 1/3.0", 0.7µm
Features :
HDR
Video :
4K@30fps, 1080p@30/120fps
Tests
Performance :
AnTuTu: 688347 (v9)
GeekBench: 3320 (v5.1), 3603 (v6)
GFXBench: 33fps (ES 3.1 onscreen)
Display :
1043 nits max brightness (measured)
Camera :
Photo / Video
Loudspeaker :
-24.2 LUFS (Very good)
Battery (old) :
Endurance rating 98h
