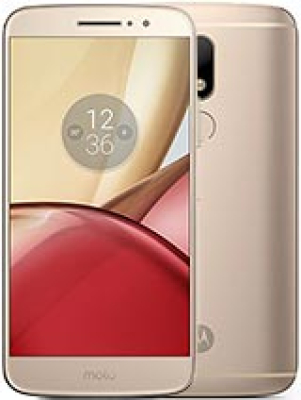

Motorola Moto M
Discontinued
163g, 7.9mm thickness
5.5" - 1080 x 1920 pixels
Android 6.0.1 (Marshmallow)
Mediatek MT6755 Helio P10 (28 nm)Mediatek MT6755T Helio P15 (28 nm) - India
32GB 3GB RAM, 64GB 4GB RAM
Li-Po 3050 mAh, non-removable
10W wired
5.5" - 1080 x 1920 pixels
Android 6.0.1 (Marshmallow)
Mediatek MT6755 Helio P10 (28 nm)Mediatek MT6755T Helio P15 (28 nm) - India
32GB 3GB RAM, 64GB 4GB RAM
Li-Po 3050 mAh, non-removable
10W wired
Launch
Announced :
2016, November. Released 2016, November
Status :
Discontinued
Network
Technology :
GSM / CDMA / HSPA / LTE
Speed :
HSPA 42.2/5.76 Mbps, LTE (2CA) Cat6 300/50 Mbps
2G bands :
GSM 850 / 900 / 1800 / 1900 - SIM 1 & SIM 2
CDMA 800 / 1900
3G bands :
HSDPA 850 / 900 / 1900 / 2100
4G bands :
1, 3, 5, 7, 8, 20, 38, 40, 41
Body
Dimensions :
151.4 x 75.4 x 7.9 mm (5.96 x 2.97 x 0.31 in)
Weight :
163 g (5.75 oz)
SIM :
Nano-SIM + Nano-SIM
Build :
Glass front, aluminum back, aluminum frame
Display
Type :
IPS LCD
Size :
5.5 inches, 83.4 cm2 (~73.1% screen-to-body ratio)
Resolution :
1080 x 1920 pixels, 16:9 ratio (~401 ppi density)
Platform
OS :
Android 6.0.1 (Marshmallow)
Chipset :
Mediatek MT6755 Helio P10 (28 nm)Mediatek MT6755T Helio P15 (28 nm) - India
CPU :
Octa-core 1.95 GHz Cortex-A53Octa-core 2.2 GHz Cortex-A53 - India
GPU :
Mali-T860MP2
Memory
Card Slot :
microSDXC (uses shared SIM slot)
Internal :
32GB 3GB RAM, 64GB 4GB RAM
eMMC 5.1
Sound
Loudspeaker :
Yes
3.5mm Jack :
Yes
Comms
WLAN :
Wi-Fi 802.11 a/b/g/n/ac, dual-band, Wi-Fi Direct
Bluetooth :
4.1, A2DP, LE, aptX
NFC :
No
Radio :
FM radio
USB :
USB Type-C, OTG
Positioning :
GPS, GLONASS, BDS
Features
Sensors :
Fingerprint (rear-mounted), accelerometer, gyro, proximity, compass
Battery
Type :
Li-Po 3050 mAh, non-removable
Charging :
10W wired
Misc
Colors :
Gold, Gray, Silver
Models :
XT1663, XT1662
SAR :
0.33 W/kg (head)
Price :
About 190 EUR
Main Camera
Features :
LED flash, panorama
Video :
1080p@30fps
Single :
16 MP, f/2.0, 1.0µm, PDAF
Selfie camera
Single :
8 MP, f/2.0, 1/4.0", 24mm (wide), 1.12µm
Video :
1080p@30fps
Tests
Performance :
GFXBench: 2.7fps (ES 3.1 onscreen)
Display :
Contrast ratio: 1417 (nominal), 2.813 (sunlight)
Camera :
Photo / Video
Loudspeaker :
Voice 64dB / Noise 72dB / Ring 72dB
Battery (old) :
Endurance rating 55h
Audio quality :
Noise -90.5dB / Crosstalk -91.4dB
