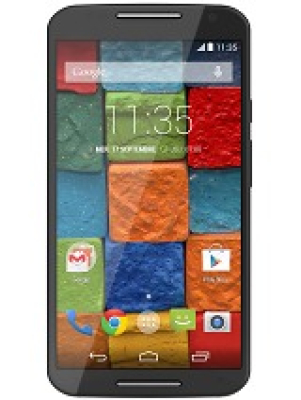

Motorola Moto X (2nd Gen)
Discontinued
144g, 10mm thickness
5.2" - 1080 x 1920 pixels
Android 4.4.4 (KitKat), upgradable to 6.0 (Marshmallow)
Qualcomm MSM8974AC Snapdragon 801 (28 nm)
16GB 2GB RAM, 32GB 2GB RAM, 64GB 2GB RAM (AT&T, T-Mobile)
Li-Ion 2300 mAh, non-removable
15W wired, QC2
5.2" - 1080 x 1920 pixels
Android 4.4.4 (KitKat), upgradable to 6.0 (Marshmallow)
Qualcomm MSM8974AC Snapdragon 801 (28 nm)
16GB 2GB RAM, 32GB 2GB RAM, 64GB 2GB RAM (AT&T, T-Mobile)
Li-Ion 2300 mAh, non-removable
15W wired, QC2
Launch
Announced :
2014, September. Released 2014, September
Status :
Discontinued
Network
Technology :
GSM / CDMA / HSPA / LTE
Speed :
HSPA 42.2/5.76 Mbps, LTE Cat4 150/50 Mbps
2G bands :
GSM 850 / 900 / 1800 / 1900 - all versions
CDMA 800 / 1900 - Verizon
3G bands :
HSDPA 850 / 900 / 1900 / 2100 - EU, AT&T, Verizon
4G bands :
2, 3, 4, 5, 7, 17 - XT1097 AT&T, XT1095 T-Mobile
Body
Dimensions :
140.8 x 72.4 x 10 mm (5.54 x 2.85 x 0.39 in)
Weight :
144 g (5.08 oz)
SIM :
Nano-SIM
Water resistant
Display
Type :
AMOLED
Size :
5.2 inches, 74.5 cm2 (~73.1% screen-to-body ratio)
Resolution :
1080 x 1920 pixels, 16:9 ratio (~424 ppi density)
Protection :
Corning Gorilla Glass 3
Platform
OS :
Android 4.4.4 (KitKat), upgradable to 6.0 (Marshmallow)
Chipset :
Qualcomm MSM8974AC Snapdragon 801 (28 nm)
CPU :
Quad-core 2.5 GHz Krait 400
GPU :
Adreno 330
Memory
Card Slot :
No
Internal :
16GB 2GB RAM, 32GB 2GB RAM, 64GB 2GB RAM (AT&T, T-Mobile)
eMMC 5.0
Sound
Loudspeaker :
Yes
3.5mm Jack :
Yes
Comms
WLAN :
Wi-Fi 802.11 a/b/g/n/ac, dual-band, DLNA, hotspot
Bluetooth :
4.0, A2DP, EDR, LE, aptX
NFC :
Yes
Radio :
No
USB :
microUSB 2.0, OTG
Positioning :
GPS, GLONASS
Features
Sensors :
Accelerometer, gyro, proximity, compass, barometer, temperature
Battery
Type :
Li-Ion 2300 mAh, non-removable
Charging :
15W wired, QC2
Misc
Colors :
Black, White
SAR EU :
0.49 W/kg (head) 0.69 W/kg (body)
Models :
XT1097, XT1096, XT1095, XT1092, XT1085, XT1093
SAR :
1.46 W/kg (head) 1.27 W/kg (body)
Price :
About 320 EUR
Main Camera
Features :
Dual-LED flash, panorama, HDR
Video :
4K@30fps, 1080p@30fps, HDR
Single :
13 MP, f/2.2, 29mm (standard), 1/3.1", 1.13µm, AF
Selfie camera
Single :
2 MP, f/2.2
Video :
1080p@30fps
Tests
Performance :
Basemark OS II 2.0: 1176Basemark X: 11855
Camera :
Photo / Video
Loudspeaker :
Voice 66dB / Noise 66dB / Ring 72dB
Battery (old) :
Endurance rating 48h
Audio quality :
Noise -93.5dB / Crosstalk -93.8dB
