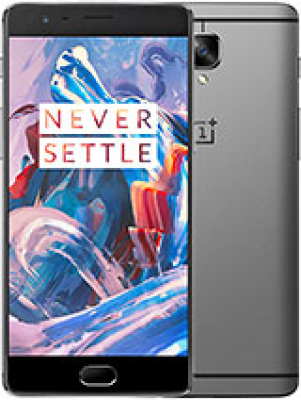

OnePlus 3
Discontinued
158g, 7.4mm thickness
5.5" - 1080 x 1920 pixels
Android 6.0.1 (Marshmallow), upgradable to Android 9.0 (Pie)
Qualcomm MSM8996 Snapdragon 820 (14 nm)
64GB 6GB RAM
Li-Ion 3000 mAh, non-removable
20W wired
5.5" - 1080 x 1920 pixels
Android 6.0.1 (Marshmallow), upgradable to Android 9.0 (Pie)
Qualcomm MSM8996 Snapdragon 820 (14 nm)
64GB 6GB RAM
Li-Ion 3000 mAh, non-removable
20W wired
Launch
Announced :
2016, June. Released 2016, June
Status :
Discontinued
Network
Technology :
GSM / HSPA / LTE
Speed :
HSPA 42.2/5.76 Mbps, LTE (2CA) Cat6 300/50 Mbps
2G bands :
GSM 850 / 900 / 1800 / 1900 - SIM 1 & SIM 2
3G bands :
HSDPA 850 / 900 / 2100
4G bands :
1, 3, 5, 7, 8, 20, 38, 40
Body
Dimensions :
152.7 x 74.7 x 7.4 mm (6.01 x 2.94 x 0.29 in)
Weight :
158 g (5.57 oz)
SIM :
Nano-SIM + Nano-SIM
Build :
Glass front (Gorilla Glass 4), aluminum back, aluminum frame
Display
Type :
Optic AMOLED
Size :
5.5 inches, 83.4 cm2 (~73.1% screen-to-body ratio)
Resolution :
1080 x 1920 pixels, 16:9 ratio (~401 ppi density)
Protection :
Corning Gorilla Glass 4
Platform
OS :
Android 6.0.1 (Marshmallow), upgradable to Android 9.0 (Pie)
Chipset :
Qualcomm MSM8996 Snapdragon 820 (14 nm)
CPU :
Quad-core (2x2.15 GHz Kryo & 2x1.6 GHz Kryo)
GPU :
Adreno 530
Memory
Card Slot :
No
Internal :
64GB 6GB RAM
Sound
Loudspeaker :
Yes
3.5mm Jack :
Yes
Comms
WLAN :
Wi-Fi 802.11 a/b/g/n/ac, Wi-Fi Direct, DLNA
Bluetooth :
4.2, A2DP, LE, aptX HD
NFC :
Yes
Radio :
No
USB :
USB Type-C 2.0
Positioning :
GPS, GLONASS, BDS
Features
Sensors :
Fingerprint (front-mounted), accelerometer, gyro, proximity, compass
Battery
Type :
Li-Ion 3000 mAh, non-removable
Charging :
20W wired
Misc
Colors :
Graphite, soft gold
SAR EU :
0.39 W/kg (head) 0.32 W/kg (body)
Models :
A3003, A3000, SM-A3000
Price :
About 400 EUR
Main Camera
Features :
LED flash, panorama, HDR
Video :
4K@30fps, 1080p@30/60fps, 720p@120fps, Auto HDR
Single :
16 MP, f/2.0, 1/2.8", 1.12µm, PDAF, OIS
Selfie camera
Single :
8 MP, f/2.0, 1/3.2", 1.4µm
Tests
Performance :
Basemark OS II 2.0: 2365Basemark X: 32715
Display :
Contrast ratio: Infinite (nominal), 4.424(sunlight)
Camera :
Photo / Video
Loudspeaker :
Voice 62dB / Noise 71dB / Ring 77dB
Battery (old) :
Endurance rating 66h
Audio quality :
Noise -93.4dB / Crosstalk -94.4dB
