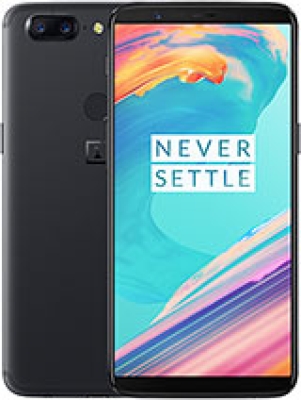

OnePlus 5T
Discontinued
162g, 7.3mm thickness
6.01" - 1080 x 2160 pixels
Android 7.1.1 (Nougat), upgradable to Android 10, OxygenOS 10.0.0
Qualcomm MSM8998 Snapdragon 835 (10 nm)
64GB 6GB RAM, 128GB 8GB RAM
Li-Po 3300 mAh, non-removable
20W wired
6.01" - 1080 x 2160 pixels
Android 7.1.1 (Nougat), upgradable to Android 10, OxygenOS 10.0.0
Qualcomm MSM8998 Snapdragon 835 (10 nm)
64GB 6GB RAM, 128GB 8GB RAM
Li-Po 3300 mAh, non-removable
20W wired
Launch
Announced :
2017, November 16. Released 2017, November 21
Status :
Discontinued
Network
Technology :
GSM / CDMA / HSPA / LTE
Speed :
HSPA 42.2/5.76 Mbps, LTE (3CA) Cat12 600/150 Mbps
2G bands :
GSM 850 / 900 / 1800 / 1900 - SIM 1 & SIM 2
CDMA 800 & TD-SCDMA
3G bands :
HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100
4G bands :
1, 2, 3, 4, 5, 7, 8, 12, 17, 18, 19, 20, 25, 26, 28, 29, 30, 34, 38, 39, 40, 41, 66
Body
Dimensions :
156.1 x 75 x 7.3 mm (6.15 x 2.95 x 0.29 in)
Weight :
162 g (5.71 oz)
SIM :
Nano-SIM + Nano-SIM
Build :
Glass front (Gorilla Glass 5), aluminum back, aluminum frame
Display
Type :
Optic AMOLED
Size :
6.01 inches, 93.7 cm2 (~80.0% screen-to-body ratio)
Resolution :
1080 x 2160 pixels, 18:9 ratio (~401 ppi density)
Protection :
Corning Gorilla Glass 5
Platform
OS :
Android 7.1.1 (Nougat), upgradable to Android 10, OxygenOS 10.0.0
Chipset :
Qualcomm MSM8998 Snapdragon 835 (10 nm)
CPU :
Octa-core (4x2.45 GHz Kryo & 4x1.9 GHz Kryo)
GPU :
Adreno 540
Memory
Card Slot :
No
Internal :
64GB 6GB RAM, 128GB 8GB RAM
UFS 2.1
Sound
Loudspeaker :
Yes
3.5mm Jack :
Yes
Dirac HD sound
Comms
WLAN :
Wi-Fi 802.11 a/b/g/n/ac, dual-band, Wi-Fi Direct, DLNA
Bluetooth :
5.0, A2DP, LE, aptX HD
NFC :
Yes
Radio :
No
USB :
USB Type-C 2.0
Positioning :
GPS, GLONASS, BDS, GALILEO
Features
Sensors :
Fingerprint (rear-mounted), accelerometer, gyro, proximity, compass
Battery
Type :
Li-Po 3300 mAh, non-removable
Charging :
20W wired
Misc
Colors :
Midnight Black, Lava Red, Sandstone White
Models :
A5010
Price :
About 840 EUR
Main Camera
Dual :
16 MP, f/1.7, 27mm (wide), 1/2.8", 1.12µm, PDAF
20 MP, f/1.7, 27mm (wide), 1/2.8", 1.0µm, AF, PDAF
Features :
Dual-LED flash, HDR, panorama
Video :
4K@30fps, 1080p@30/60fps, 720p@30/120fps, Auto HDR
Selfie camera
Single :
16 MP, f/2.0, 20mm (wide), 1/3.06", 1.0µm
Features :
HDR
Video :
1080p (gyro-EIS)
Tests
Performance :
AnTuTu: 207072 (v7), 260352 (v8)
GeekBench: 6759 (v4.4), 1705 (v5.1)
GFXBench: 24fps (ES 3.1 onscreen)
Display :
Contrast ratio: Infinite (nominal), 4.789 (sunlight)
Camera :
Photo / Video
Loudspeaker :
Voice 68dB / Noise 73dB / Ring 69dB
Battery (old) :
Endurance rating 82h
Audio quality :
Noise -94.0dB / Crosstalk -93.7dB
