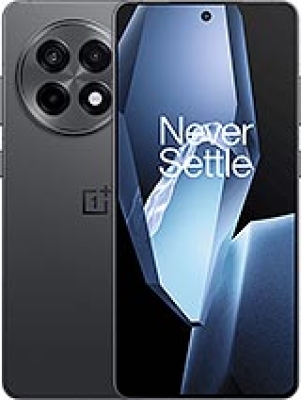

OnePlus Ace 5
Available. Released 2024, December 26
206g, 8.1mm thickness
6.78" - 1264 x 2780 pixels
Android 15, ColorOS 15
Qualcomm SM8650-AB Snapdragon 8 Gen 3 (4 nm)
256GB 12GB RAM, 256GB 16GB RAM, 512GB 12GB RAM, 512GB 16GB RAM, 1TB 16GB RAM
Si/C Li-Ion 6415 mAh
80W wired, 18W PD, 55% in 15 min, 100% in 35 min
6.78" - 1264 x 2780 pixels
Android 15, ColorOS 15
Qualcomm SM8650-AB Snapdragon 8 Gen 3 (4 nm)
256GB 12GB RAM, 256GB 16GB RAM, 512GB 12GB RAM, 512GB 16GB RAM, 1TB 16GB RAM
Si/C Li-Ion 6415 mAh
80W wired, 18W PD, 55% in 15 min, 100% in 35 min
Launch
Announced :
2024, December 26
Status :
Available. Released 2024, December 26
Network
Technology :
GSM / CDMA / HSPA / LTE / 5G
Speed :
HSPA, LTE (CA), 5G
2G bands :
GSM 850 / 900 / 1800 / 1900
CDMA 800
3G bands :
HSDPA 800 / 850 / 900 / 1700(AWS) / 2100
4G bands :
1, 3, 4, 5, 8, 18, 19, 26, 28, 34, 38, 39, 40, 41, 42, 48, 66
5G bands :
1, 3, 5, 8, 28, 38, 40, 41, 48, 66, 77, 78 SA/NSA
Body
Dimensions :
161.7 x 75.8 x 8.1 mm (6.37 x 2.98 x 0.32 in)
Weight :
206 g or 223 g (7.27 oz)
SIM :
Nano-SIM + Nano-SIM
Build :
Glass front (Crystal Shield Glass), glass back (Crystal Shield Glass), aluminum frame
IP65 dust tight and water resistant (low pressure water jets)
Display
Type :
LTPO AMOLED, 1B colors, 120Hz, HDR10+, Dolby Vision, 800 nits (typ), 1600 nits (HBM), 4500 nits (peak)
Size :
6.78 inches, 111.7 cm2 (~91.2% screen-to-body ratio)
Resolution :
1264 x 2780 pixels (~450 ppi density)
Protection :
Crystal Shield Glass
Platform
OS :
Android 15, ColorOS 15
Chipset :
Qualcomm SM8650-AB Snapdragon 8 Gen 3 (4 nm)
CPU :
Octa-core (1x3.3 GHz Cortex-X4 & 3x3.2 GHz Cortex-A720 & 2x3.0 GHz Cortex-A720 & 2x2.3 GHz Cortex-A520)
GPU :
Adreno 750
Memory
Card Slot :
No
Internal :
256GB 12GB RAM, 256GB 16GB RAM, 512GB 12GB RAM, 512GB 16GB RAM, 1TB 16GB RAM
UFS 4.0
Sound
Loudspeaker :
Yes, with stereo speakers
3.5mm Jack :
No
Comms
WLAN :
Wi-Fi 802.11 a/b/g/n/ac/6/7, dual-band
Bluetooth :
5.4, A2DP, LE, aptX HD, LHDC 5
NFC :
Yes, HCE, eSE, NFC-SIM
Radio :
No
USB :
USB Type-C 2.0
Positioning :
GPS (L1+L5), GLONASS (G1), BDS (B1I+B1c+B2a), GALILEO (E1+E5a), QZSS (L1+L5)
Infrared port :
Yes
Features
Sensors :
Fingerprint (under display, optical), accelerometer, gyro, proximity, compass
Battery
Type :
Si/C Li-Ion 6415 mAh
Charging :
80W wired, 18W PD, 55% in 15 min, 100% in 35 min
Misc
Colors :
Gray, White, Green
Models :
PKG110
Price :
About 300 EUR
Main Camera
Features :
Color spectrum sensor, Dual-LED flash, HDR, panorama
Video :
4K@30/60fps, 1080p@30/60/120/240fps, gyro-EIS, OIS
Triple :
50 MP, f/1.8, 24mm (wide), 1/1.56", 1.0µm, PDAF, OIS
8 MP, f/2.2, 16mm, 112˚ (ultrawide), 1/4.0", 1.12µm
2 MP, f/2.4, (macro)
Selfie camera
Single :
16 MP, f/2.4, 24mm (wide), 1/3", 1.0µm
Features :
HDR, panorama
Video :
1080p@30fps, gyro-EIS
