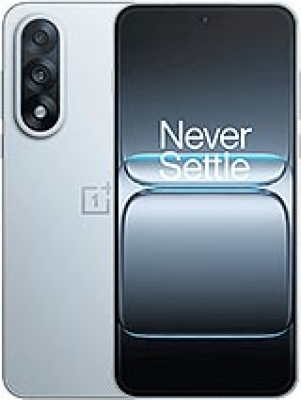

OnePlus Ace 5 Ultra
Available. Released 2025, May 27
206g, 8.1mm thickness
6.83" - 1272 x 2800 pixels
Android 15, ColorOS 15
Mediatek Dimensity 9400+ (3 nm)
256GB 12GB RAM, 256GB 16GB RAM, 512GB 12GB RAM, 512GB 16GB RAM, 1TB 16GB RAM
Si/C Li-Ion 6700 mAh
100W wired, PD, 100% in 39 min 7.5W reverse wired Bypass charging
6.83" - 1272 x 2800 pixels
Android 15, ColorOS 15
Mediatek Dimensity 9400+ (3 nm)
256GB 12GB RAM, 256GB 16GB RAM, 512GB 12GB RAM, 512GB 16GB RAM, 1TB 16GB RAM
Si/C Li-Ion 6700 mAh
100W wired, PD, 100% in 39 min 7.5W reverse wired Bypass charging
Launch
Announced :
2025, May 27
Status :
Available. Released 2025, May 27
Network
Technology :
GSM / HSPA / LTE / 5G
Speed :
HSPA, LTE, 5G
2G bands :
GSM 850 / 900 / 1800 / 1900
3G bands :
HSDPA 850 / 900 / 1700(AWS) / 2100
4G bands :
1, 3, 4, 5, 8, 18, 19, 26, 28, 34, 38, 39, 40, 41, 42, 48, 66
5G bands :
1, 3, 5, 8, 26, 28, 38, 40, 41, 48, 66, 77, 78 SA/NSA
Body
Dimensions :
163.4 x 77 x 8.1 mm (6.43 x 3.03 x 0.32 in)
Weight :
206 g (7.27 oz)
SIM :
Nano-SIM + Nano-SIM
IP65 dust tight and water resistant (low pressure water jets)
Display
Type :
AMOLED, 1B colors, 144Hz, 3840Hz PWM, HDR10+, Dolby Vision, HDR Vivid, 800 nits (typ), 1400 nits (peak)
Size :
6.83 inches, 113.3 cm2 (~90.1% screen-to-body ratio)
Resolution :
1272 x 2800 pixels (~450 ppi density)
Protection :
Crystal Shield Glass
Platform
OS :
Android 15, ColorOS 15
Chipset :
Mediatek Dimensity 9400+ (3 nm)
CPU :
Octa-core (1x3.73 GHz Cortex-X925 & 3x3.3 GHz Cortex-X4 & 4x2.4 GHz Cortex-A720)
GPU :
Immortalis-G925 MC12
Memory
Card Slot :
No
Internal :
256GB 12GB RAM, 256GB 16GB RAM, 512GB 12GB RAM, 512GB 16GB RAM, 1TB 16GB RAM
UFS 4.0
Sound
Loudspeaker :
Yes, with stereo speakers
3.5mm Jack :
No
Comms
WLAN :
Wi-Fi 802.11 a/b/g/n/ac/6/7, dual-band
Bluetooth :
5.4, A2DP, LE, aptX HD, LHDC 5, BLE Audio
NFC :
Yes
Radio :
No
USB :
USB Type-C 2.0
Positioning :
GPS (L1+L5), GLONASS (G1), BDS (B1I+B1c+B2a+B2b), GALILEO (E1+E5a+E5b), QZSS (L1+L5), NavIC (L5)
Infrared port :
Yes
Features
Sensors :
Fingerprint (under display, optical), accelerometer, gyro, proximity, compass
Battery
Type :
Si/C Li-Ion 6700 mAh
Charging :
100W wired, PD, 100% in 39 min
7.5W reverse wired
Bypass charging
Misc
Colors :
Blue, Black, Titanium
Models :
PLC110
Price :
About 310 EUR
Main Camera
Dual :
50 MP, f/1.8, 24mm (wide), 1/1.56", 1.0µm, PDAF, OIS
8 MP, f/2.2, 16mm, 112˚ (ultrawide), 1/4.0", 1.12µm
Features :
LED flash, HDR, panorama
Video :
4K@30/60fps, 1080p@30/60/120/240fps, gyro-EIS, OIS
Selfie camera
Single :
16 MP, f/2.4, 23mm (wide), 1/3", 1.0µm
Features :
HDR, panorama
Video :
1080p@30fps, gyro-EIS
