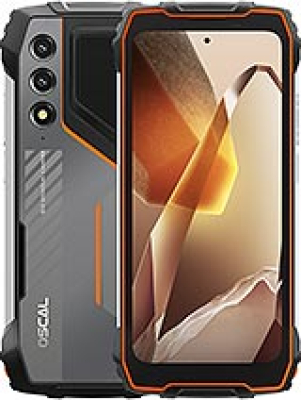

Oscal Pilot 1
Available. Released 2025, January
540g, 22mm thickness
6.67" - 1080 x 2400 pixels
Android 14, DokeOS 4.0
Mediatek Helio G81 (12 nm)
256GB 6GB RAM
15000 mAh
33W wired, 20% in 27 min 10W reverse wired
6.67" - 1080 x 2400 pixels
Android 14, DokeOS 4.0
Mediatek Helio G81 (12 nm)
256GB 6GB RAM
15000 mAh
33W wired, 20% in 27 min 10W reverse wired
Launch
Announced :
2025, January
Status :
Available. Released 2025, January
Network
Technology :
GSM / CDMA / HSPA / LTE
Speed :
HSPA, LTE
2G bands :
GSM 850 / 900 / 1800 / 1900
CDMA 800 / 1900
3G bands :
HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100
4G bands :
1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 30, 34, 38, 39, 40, 41, 66
Body
Dimensions :
185.5 x 85 x 22 mm (7.30 x 3.35 x 0.87 in)
Weight :
540 g (1.19 lb)
SIM :
Nano-SIM + Nano-SIM
IP68/IP69K dust tight and water resistant (high pressure water jets; immersible up to 1.5m for 30 min)
Drop resistant up to 2m
MIL-STD-810H compliant
Dedicated flashlight 170 lumens (top mounted)
Display
Type :
IPS LCD, 90Hz, 700 nits
Size :
6.67 inches, 107.4 cm2 (~68.1% screen-to-body ratio)
Resolution :
1080 x 2400 pixels, 20:9 ratio (~395 ppi density)
Protection :
Corning Gorilla Glass 5
Platform
OS :
Android 14, DokeOS 4.0
Chipset :
Mediatek Helio G81 (12 nm)
CPU :
Octa-core (2x2.0 GHz Cortex-A75 & 6x1.8 GHz Cortex-A55)
GPU :
Mali-G52 MC2
Memory
Card Slot :
microSDXC (uses shared SIM slot)
Internal :
256GB 6GB RAM
eMMC 5.1
Sound
Loudspeaker :
Yes, with stereo speakers (138dB, 5W)
3.5mm Jack :
No
Comms
WLAN :
Wi-Fi 802.11 a/b/g/n/ac, dual-band
Bluetooth :
5.3, A2DP, LE
NFC :
Yes
Radio :
FM radio
USB :
USB Type-C, OTG
Positioning :
GPS, GLONASS, BDS, GALILEO
Features
Sensors :
Fingerprint (side-mounted), accelerometer, gyro, proximity, compass
Battery
Type :
15000 mAh
Charging :
33W wired, 20% in 27 min
10W reverse wired
Misc
Colors :
Black, Orange
Price :
$ 167.99 / € 249.99 / £ 219.99
Main Camera
Dual :
50 MP, f/1.8, (wide), 1/2.76", PDAF
2 MP, (depth)
Features :
LED flash, HDR, panorama
Video :
1080p@30fps
Selfie camera
Single :
32 MP, (wide), 1/3.1"
Features :
HDR
Video :
1080p@30fps
