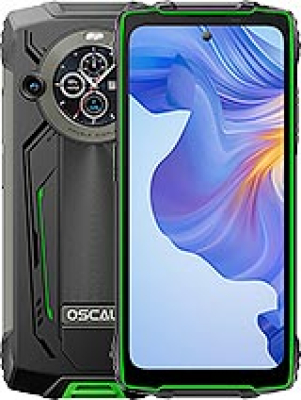

Oscal Pilot 2
Available. Released 2024, May
368g, 17mm thickness
6.5" - 1080 x 2400 pixels
Android 14, DokeOS 4.0
Mediatek Helio G99 (6 nm)
256GB 8GB RAM
8800 mAh
45W wired 5W reverse wired
6.5" - 1080 x 2400 pixels
Android 14, DokeOS 4.0
Mediatek Helio G99 (6 nm)
256GB 8GB RAM
8800 mAh
45W wired 5W reverse wired
Launch
Announced :
2024, May
Status :
Available. Released 2024, May
Network
Technology :
GSM / CDMA / HSPA / LTE
Speed :
HSPA, LTE
2G bands :
GSM 850 / 900 / 1800 / 1900
CDMA 800 / 1900
3G bands :
HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100
4G bands :
1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 30, 34, 38, 39, 40, 41, 66
Body
Dimensions :
179.5 x 82.6 x 17 mm (7.07 x 3.25 x 0.67 in)
Weight :
368 g (12.98 oz)
SIM :
Nano-SIM + Nano-SIM
IP68/IP69K dust tight and water resistant (high pressure water jets; immersible up to 1.5m for 30 min)
Drop resistant up to 1.2m
MIL-STD-810H compliant
Dedicated flashlight (top mounted)
Display
Type :
IPS LCD, 120Hz, 500 nits
Size :
6.5 inches, 102.0 cm2 (~68.8% screen-to-body ratio)
Resolution :
1080 x 2400 pixels, 20:9 ratio (~405 ppi density)
Protection :
Corning Gorilla Glass 5
Back display:
1.3 inches, 360 x 360 pixels
Platform
OS :
Android 14, DokeOS 4.0
Chipset :
Mediatek Helio G99 (6 nm)
CPU :
Octa-core (2x2.2 GHz Cortex-A76 & 6x2.0 GHz Cortex-A55)
GPU :
Mali-G57 MC2
Memory
Card Slot :
microSDXC (uses shared SIM slot)
Internal :
256GB 8GB RAM
UFS 2.2
Sound
Loudspeaker :
Yes
3.5mm Jack :
No
Comms
WLAN :
Wi-Fi 802.11 a/b/g/n/ac, dual-band
Bluetooth :
5.1, A2DP, LE
NFC :
Yes
Radio :
FM radio
USB :
USB Type-C, OTG
Positioning :
GPS, GLONASS, BDS, GALILEO
Features
Sensors :
Fingerprint (side-mounted), accelerometer, gyro, proximity, compass
Battery
Type :
8800 mAh
Charging :
45W wired
5W reverse wired
Misc
Colors :
Black, Green, Orange
Main Camera
Dual :
50 MP, (wide), 1/1.57", PDAF, OIS
13 MP, 120˚, (ultrawide), AF
Features :
LED flash, HDR, panorama
Video :
1440p@30fps, 1080p@30fps
Selfie camera
Single :
32 MP, (wide)
Video :
1080p@30fps
