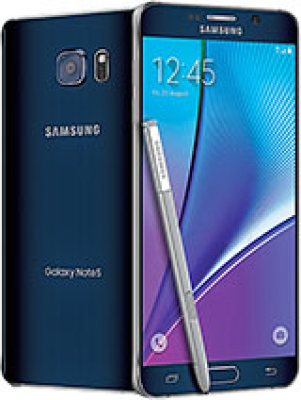

Samsung Galaxy Note5
Discontinued
171g, 7.6mm thickness
5.7" - 1440 x 2560 pixels
Android 5.1.1 (Lollipop), upgradable to 7.0 (Nougat)
Exynos 7420 Octa (14 nm)
32GB 4GB RAM, 64GB 4GB RAM, 128GB 4GB RAM
Li-Po 3000 mAh, non-removable
15W wired, QC2 Wireless (Qi) (market dependent)
5.7" - 1440 x 2560 pixels
Android 5.1.1 (Lollipop), upgradable to 7.0 (Nougat)
Exynos 7420 Octa (14 nm)
32GB 4GB RAM, 64GB 4GB RAM, 128GB 4GB RAM
Li-Po 3000 mAh, non-removable
15W wired, QC2 Wireless (Qi) (market dependent)
Launch
Announced :
2015, August 13. Released 2015, August
Status :
Discontinued
Network
Technology :
GSM / HSPA / LTE
Speed :
HSPA 42.2/5.76 Mbps, LTE Cat6 300/50 Mbps/ LTE (3CA) Cat9 450/50 Mbps
2G bands :
GSM 850 / 900 / 1800 / 1900
3G bands :
HSDPA 850 / 900 / 1900 / 2100
4G bands :
1, 2, 3, 4, 5, 7, 8, 12, 17, 18, 19, 25, 26, 28, 38, 39, 40, 41
Body
Dimensions :
153.2 x 76.1 x 7.6 mm (6.03 x 3.00 x 0.30 in)
Weight :
171 g (6.03 oz)
SIM :
Nano-SIM
Build :
Glass front (Gorilla Glass 4), glass back (Gorilla Glass 4), aluminum frame
Stylus
Display
Type :
Super AMOLED
Size :
5.7 inches, 88.5 cm2 (~75.9% screen-to-body ratio)
Resolution :
1440 x 2560 pixels, 16:9 ratio (~518 ppi density)
Protection :
Corning Gorilla Glass 4
Platform
OS :
Android 5.1.1 (Lollipop), upgradable to 7.0 (Nougat)
Chipset :
Exynos 7420 Octa (14 nm)
CPU :
Octa-core (4x2.1 GHz Cortex-A57 & 4x1.5 GHz Cortex-A53)
GPU :
Mali-T760MP8
Memory
Card Slot :
No
Internal :
32GB 4GB RAM, 64GB 4GB RAM, 128GB 4GB RAM
UFS 2.0
Sound
Loudspeaker :
Yes
3.5mm Jack :
Yes
24-bit/192kHz audio
Comms
WLAN :
Wi-Fi 802.11 a/b/g/n/ac, dual-band, Wi-Fi Direct, hotspot
Bluetooth :
4.2, A2DP, EDR, LE
NFC :
Yes
Radio :
No
USB :
microUSB 2.0, OTG
Positioning :
GPS, GLONASS, BDS
Features
Sensors :
Fingerprint (front-mounted), accelerometer, gyro, proximity, compass, barometer, heart rate, SpO2
ANT+
S-Voice natural language commands and dictation
Samsung Pay (Visa, MasterCard certified)
Battery
Talk time :
Up to 22 h (3G)
Music play :
Up to 64 h
Type :
Li-Po 3000 mAh, non-removable
Charging :
15W wired, QC2
Wireless (Qi) (market dependent)
Misc
Colors :
Black Sapphire, Gold Platinum, Silver Titan, White Pearl
SAR EU :
0.45 W/kg (head) 0.58 W/kg (body)
Models :
SM-N920, SM-N920T, SM-N920A, SM-N920I, SM-N920G, SM-N920F, SM-N920S, SM-N920L, SM-N920K, SM-N9200
SAR :
1.53 W/kg (head) 1.28 W/kg (body)
Price :
About 450 EUR
Main Camera
Features :
LED flash, panorama, HDR
Video :
4K@30fps, 1080p@30/60fps, stereo sound rec., gyro-EIS
Single :
16 MP, f/1.9, 28mm (wide), 1/2.6", 1.12µm, AF, OIS
Selfie camera
Single :
5 MP, f/1.9, 22mm (wide), 1/4.1", 1.34µm
Features :
HDR
Video :
1440p@30fps
Tests
Performance :
Basemark OS II 2.0: 1880Basemark X: 26281
Display :
Contrast ratio: Infinite (nominal), 4.090 (sunlight)
Camera :
Photo / Video
Loudspeaker :
Voice 66dB / Noise 67dB / Ring 71dB
Battery (old) :
Endurance rating 85h
Audio quality :
Noise -93.6dB / Crosstalk -94.7dB
