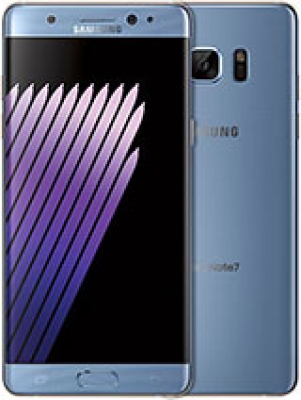

Samsung Galaxy Note7
Discontinued
169g, 7.9mm thickness
5.7" - 1440 x 2560 pixels
Android 6.0.1 (Marshmallow), TouchWiz UI
Exynos 8890 Octa (14 nm)
64GB 4GB RAM
Li-Ion 3500 mAh, non-removable
15W wired, QC2 Wireless (Qi) (market dependent)
5.7" - 1440 x 2560 pixels
Android 6.0.1 (Marshmallow), TouchWiz UI
Exynos 8890 Octa (14 nm)
64GB 4GB RAM
Li-Ion 3500 mAh, non-removable
15W wired, QC2 Wireless (Qi) (market dependent)
Launch
Announced :
2016, August. Released 2016, September
Status :
Discontinued
Network
Technology :
GSM / HSPA / LTE
Speed :
HSPA 42.2/5.76 Mbps, LTE (3CA) Cat9/Cat10 or LTE (3CA) Cat12 600/150 Mbps
2G bands :
GSM 850 / 900 / 1800 / 1900 - SIM 1 & SIM 2 (dual-SIM model only)
3G bands :
HSDPA 850 / 900 / 1900 / 2100
4G bands :
LTE
Body
Dimensions :
153.5 x 73.9 x 7.9 mm (6.04 x 2.91 x 0.31 in)
Weight :
169 g (5.96 oz)
SIM :
Nano-SIMNano-SIM + Nano-SIM
Build :
Glass front (Gorilla Glass 5), glass back (Gorilla Glass 5), aluminum frame
IP68 dust tight and water resistant (immersible up to 1.5m for 30 min)
Stylus
Display
Type :
Super AMOLED, HDR10
Size :
5.7 inches, 88.5 cm2 (~78.0% screen-to-body ratio)
Resolution :
1440 x 2560 pixels, 16:9 ratio (~518 ppi density)
Protection :
Corning Gorilla Glass 5
Always-on display
Platform
OS :
Android 6.0.1 (Marshmallow), TouchWiz UI
Chipset :
Exynos 8890 Octa (14 nm)
CPU :
Octa-core (4x2.3 GHz Mongoose & 4x1.6 GHz Cortex-A53)
GPU :
Mali-T880 MP12
Memory
Card Slot :
microSDXC (uses shared SIM slot) - dual SIM model only
Internal :
64GB 4GB RAM
UFS 2.0
Sound
Loudspeaker :
Yes
3.5mm Jack :
Yes
24-bit/192kHz audio
Comms
WLAN :
Wi-Fi 802.11 a/b/g/n/ac, dual-band, Wi-Fi Direct
Bluetooth :
4.2, A2DP, EDR, LE
NFC :
Yes
Radio :
No
USB :
USB Type-C 3.1
Positioning :
GPS, GLONASS, BDS, GALILEO
Features
Sensors :
Iris scanner, fingerprint (front-mounted), accelerometer, gyro, proximity, compass, barometer, heart rate, SpO2
ANT+
S-Voice natural language commands and dictation
Samsung Pay (Visa, MasterCard certified)
Battery
Type :
Li-Ion 3500 mAh, non-removable
Charging :
15W wired, QC2
Wireless (Qi) (market dependent)
Misc
Colors :
Blue Coral, Gold Platinum, Silver Titanium, Black Onyx
SAR EU :
0.25 W/kg (head) 1.28 W/kg (body)
Models :
SM-N930V, SM-N930A, SM-N930P, SM-N930T, SM-N930R4, SM-N930W8, SM-N930F, SM-N930G, SM-N930S
Price :
About 850 EUR
Main Camera
Features :
LED flash, auto-HDR, panorama
Video :
4K@30fps, 1080p@30/60fps, 720p@240fps, stereo sound rec., HDR, gyro-EIS
Single :
12 MP, f/1.7, 26mm (wide), 1/2.55", 1.4µm, dual pixel PDAF, OIS
Selfie camera
Features :
HDR
Dual :
5 MP, f/1.7, 22mm (wide)
2 MP (dedicated iris scanner camera)
Tests
Performance :
Basemark OS II 2.0: 2676Basemark X: 32648
Display :
Contrast ratio: Infinite (nominal), 4.247 (sunlight)
Camera :
Photo / Video
Loudspeaker :
Voice 69dB / Noise 69dB / Ring 72dB
Battery (old) :
Endurance rating 90h
Audio quality :
Noise -92.8dB / Crosstalk -92.9dB
