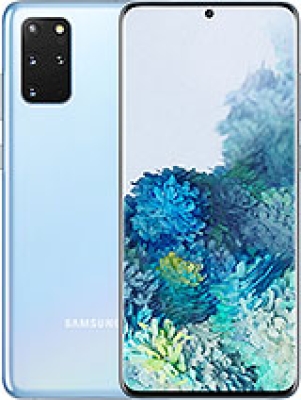

Samsung Galaxy S20+ 5G
Available. Released 2020, March 06
188g, 7.8mm thickness
6.7" - 1440 x 3200 pixels
Android 10, upgradable to Android 13, One UI 5.1
Exynos 990 (7 nm+) - GlobalQualcomm SM8250 Snapdragon 865 5G (7 nm+) - USA
128GB 8GB RAM, 128GB 12GB RAM, 256GB 12GB RAM, 512GB 12GB RAM
Li-Ion 4500 mAh
25W wired, PD3.0 15W wireless (Qi) 4.5W reverse wireless
6.7" - 1440 x 3200 pixels
Android 10, upgradable to Android 13, One UI 5.1
Exynos 990 (7 nm+) - GlobalQualcomm SM8250 Snapdragon 865 5G (7 nm+) - USA
128GB 8GB RAM, 128GB 12GB RAM, 256GB 12GB RAM, 512GB 12GB RAM
Li-Ion 4500 mAh
25W wired, PD3.0 15W wireless (Qi) 4.5W reverse wireless
Launch
Announced :
2020, February 11
Status :
Available. Released 2020, March 06
Network
Technology :
GSM / CDMA / HSPA / EVDO / LTE / 5G
Speed :
HSPA 42.2/5.76 Mbps, LTE (7CA) Cat20 2000/200 Mbps, 5G (5+ Gbps DL)
2G bands :
GSM 850 / 900 / 1800 / 1900
CDMA 800 / 1900 & TD-SCDMA
3G bands :
HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100
4G bands :
1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 32, 38, 39, 40, 41, 66 - SM-G986B
5G bands :
1, 3, 5, 7, 8, 28, 40, 77, 78 SA/NSA/Sub6 - SM-G986B
Body
Dimensions :
161.9 x 73.7 x 7.8 mm (6.37 x 2.90 x 0.31 in)
Weight :
188 g (6.63 oz)
SIM :
Nano-SIM + eSIMNano-SIM + Nano-SIM
Build :
Glass front (Gorilla Glass 6), glass back (Gorilla Glass 6), aluminum frame
IP68 dust tight and water resistant (immersible up to 1.5m for 30 min)
Display
Type :
Dynamic AMOLED 2X, 120Hz, HDR10+, 1200 nits (peak)
Size :
6.7 inches, 108.0 cm2 (~90.5% screen-to-body ratio)
Resolution :
1440 x 3200 pixels, 20:9 ratio (~525 ppi density)
Protection :
Corning Gorilla Glass 6
Always-on display
120Hz@FHD/60Hz@QHD refresh rate
Platform
OS :
Android 10, upgradable to Android 13, One UI 5.1
Chipset :
Exynos 990 (7 nm+) - GlobalQualcomm SM8250 Snapdragon 865 5G (7 nm+) - USA
CPU :
Octa-core (2x2.73 GHz Mongoose M5 & 2x2.50 GHz Cortex-A76 & 4x2.0 GHz Cortex-A55) - GlobalOcta-core (1x2.84 GHz Cortex-A77 & 3x2.42 GHz Cortex-A77 & 4x1.80 GHz Cortex-A55) - USA
GPU :
Mali-G77 MP11 - GlobalAdreno 650 - USA
Memory
Card Slot :
microSDXC (uses shared SIM slot)
Internal :
128GB 8GB RAM, 128GB 12GB RAM, 256GB 12GB RAM, 512GB 12GB RAM
UFS 3.0
Sound
Loudspeaker :
Yes, with stereo speakers
3.5mm Jack :
No
32-bit/384kHz audio
Tuned by AKG
Comms
WLAN :
Wi-Fi 802.11 a/b/g/n/ac/6, dual-band, Wi-Fi Direct
Bluetooth :
5.0, A2DP, LE
NFC :
Yes
Radio :
FM radio (Snapdragon model only; market/operator dependent)
USB :
USB Type-C 3.2, OTG
Positioning :
GPS, GLONASS, BDS, GALILEO
Features
Sensors :
Fingerprint (under display, ultrasonic), accelerometer, gyro, proximity, compass, barometer
Samsung DeX, Samsung Wireless DeX (desktop experience support)
ANT+
Battery
Type :
Li-Ion 4500 mAh
Charging :
25W wired, PD3.0
15W wireless (Qi)
4.5W reverse wireless
Misc
Colors :
Cosmic Black, Cosmic Grey, Cloud Blue, Cloud White, Aura Red, Aura Blue
SAR EU :
1.09 W/kg (head) 1.57 W/kg (body)
Models :
SM-G986, SM-G986F, SM-G986F/DS, SM-G986U, SM-G986U1, SM-G9860, SM-G986B/DS, SM-G986N, SM-G986B, SM-G986W, SCG02
SAR :
1.08 W/kg (head) 1.02 W/kg (body)
Price :
$ 180.95 / € 318.00 / £ 170.00
Main Camera
Features :
LED flash, auto-HDR, panorama
Video :
8K@24fps, 4K@30/60fps, 1080p@30/60/240fps, 720p@960fps, HDR10+, stereo sound rec., gyro-EIS & OIS
Triple :
12 MP, f/1.8, 26mm (wide), 1/1.76", 1.8µm, dual pixel PDAF, OIS
64 MP, f/2.0, 29mm (telephoto), 1/1.72", 0.8µm, PDAF, OIS, 1.1x optical zoom, 3x hybrid zoom
12 MP, f/2.2, 13mm, 120˚ (ultrawide), 1/2.55" 1.4µm, Super Steady video
0.3 MP, TOF 3D, f/1.0, (depth)
Selfie camera
Single :
10 MP, f/2.2, 26mm (wide), 1/3.24", 1.22µm, dual pixel PDAF
Features :
HDR
Video :
4K@30/60fps, 1080p@30fps
