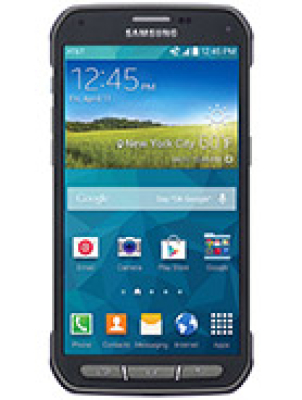

Samsung Galaxy S5 Active
Discontinued
170.1g, 8.9mm thickness
5.1" - 1080 x 1920 pixels
Android 4.4.2 (KitKat), upgradable to 6.0.1 (Marshmallow), TouchWiz UI
Qualcomm Snapdragon 801 (28 nm)
16GB (11.2GB user available), 2GB RAM
Li-Ion 2800 mAh, removable
5.1" - 1080 x 1920 pixels
Android 4.4.2 (KitKat), upgradable to 6.0.1 (Marshmallow), TouchWiz UI
Qualcomm Snapdragon 801 (28 nm)
16GB (11.2GB user available), 2GB RAM
Li-Ion 2800 mAh, removable
Launch
Announced :
2014, May. Released 2014, May
Status :
Discontinued
Network
Technology :
GSM / HSPA / LTE
Speed :
HSPA 42.2/11.5 Mbps, LTE Cat4 150/50 Mbps
2G bands :
GSM 850 / 900 / 1800 / 1900 - all versions
1, 2, 3, 4, 5, 7, 17, 29 - Bell
3G bands :
HSDPA 850 / 1900 / 2100 - AT&T, Bell
4G bands :
1, 2, 3, 4, 5, 7, 17 - AT&T
Body
Dimensions :
145.3 x 73.4 x 8.9 mm (5.72 x 2.89 x 0.35 in)
Weight :
170.1 g (6.00 oz)
SIM :
Micro-SIM
IP67 dust/water resistant (up to 1m for 30 min)
MIL-STD-810F compliant
Display
Type :
Super AMOLED
Size :
5.1 inches, 71.7 cm2 (~67.2% screen-to-body ratio)
Resolution :
1080 x 1920 pixels, 16:9 ratio (~432 ppi density)
Protection :
Corning Gorilla Glass 3
Platform
OS :
Android 4.4.2 (KitKat), upgradable to 6.0.1 (Marshmallow), TouchWiz UI
Chipset :
Qualcomm Snapdragon 801 (28 nm)
CPU :
Quad-core 2.5 GHz Krait 400
GPU :
Adreno 330
Memory
Card Slot :
microSDXC (dedicated slot)
Internal :
16GB (11.2GB user available), 2GB RAM
eMMC 5.0
Sound
Loudspeaker :
Yes
3.5mm Jack :
Yes
Comms
WLAN :
Wi-Fi 802.11 a/b/g/n/ac, dual-band, Wi-Fi Direct, hotspot
Bluetooth :
4.0, A2DP, EDR, LE, aptX
NFC :
Yes
Radio :
No
USB :
microUSB 2.0, OTG
Positioning :
GPS, GLONASS
Features
Sensors :
Accelerometer, gyro, proximity, compass, heart rate
HDMI port
Battery
Stand-by :
Up to 480 h
Talk time :
Up to 29 h
Type :
Li-Ion 2800 mAh, removable
Misc
Colors :
Camo Green, Titanium Grey, Ruby Red
SAR EU :
0.67 W/kg (head) 0.45 W/kg (body)
Models :
SM-G870A, SC-02G, SM-G870D, SM-G870F, SM-G870W
SAR :
0.92 W/kg (head) 1.48 W/kg (body)
Price :
About 400 EUR
Main Camera
Features :
LED flash, panorama, HDR
Video :
4K@30fps, 1080p@30fps
Single :
16 MP, f/2.2, 31mm (standard), AF
Selfie camera
Single :
2 MP, f/2.4, 22mm (wide)
Video :
1080p@30fps
Tests
Performance :
Basemark OS II 2.0: 1073Basemark X: 12111
Camera :
Photo / Video
Loudspeaker :
Voice 73dB / Noise 69dB / Ring 76dB
Battery (old) :
Endurance rating 70h
Audio quality :
Noise -96.1dB / Crosstalk -96.5dB
