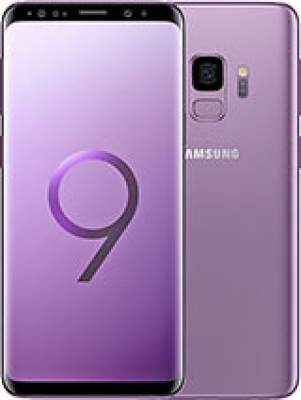

Samsung Galaxy S9
Available. Released 2018, March 09
163g, 8.5mm thickness
5.8" - 1440 x 2960 pixels
Android 8.0 (Oreo), upgradable to Android 10, One UI 2.5
Exynos 9810 (10 nm) - EMEAQualcomm SDM845 Snapdragon 845 (10 nm) - USA/LATAM, China
64GB 4GB RAM, 128GB 4GB RAM, 256GB 4GB RAM
Li-Ion 3000 mAh, non-removable (11.55 Wh)
15W wired, QC2 Wireless (Qi) (market dependent)
5.8" - 1440 x 2960 pixels
Android 8.0 (Oreo), upgradable to Android 10, One UI 2.5
Exynos 9810 (10 nm) - EMEAQualcomm SDM845 Snapdragon 845 (10 nm) - USA/LATAM, China
64GB 4GB RAM, 128GB 4GB RAM, 256GB 4GB RAM
Li-Ion 3000 mAh, non-removable (11.55 Wh)
15W wired, QC2 Wireless (Qi) (market dependent)
Launch
Announced :
2018, February 25
Status :
Available. Released 2018, March 09
Network
Technology :
GSM / CDMA / HSPA / EVDO / LTE
Speed :
HSPA 42.2/5.76 Mbps, LTE (6CA) Cat18 1200/200 Mbps
2G bands :
GSM 850 / 900 / 1800 / 1900 - SIM 1 & SIM 2 (dual-SIM model only)
CDMA 800 / 1900 - USA
3G bands :
HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100 - Global, USA
4G bands :
1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 32, 38, 39, 40, 41, 66 - Global
Body
Dimensions :
147.7 x 68.7 x 8.5 mm (5.81 x 2.70 x 0.33 in)
Weight :
163 g (5.75 oz)
SIM :
Nano-SIMNano-SIM + Nano-SIM
Build :
Glass front (Gorilla Glass 5), glass back (Gorilla Glass 5), aluminum frame
IP68 dust tight and water resistant (immersible up to 1.5m for 30 min)
Display
Type :
Super AMOLED, HDR10
Size :
5.8 inches, 84.8 cm2 (~83.6% screen-to-body ratio)
Resolution :
1440 x 2960 pixels, 18.5:9 ratio (~570 ppi density)
Protection :
Corning Gorilla Glass 5
3D Touch (home button only)
Always-on display
Platform
OS :
Android 8.0 (Oreo), upgradable to Android 10, One UI 2.5
Chipset :
Exynos 9810 (10 nm) - EMEAQualcomm SDM845 Snapdragon 845 (10 nm) - USA/LATAM, China
CPU :
Octa-core (4x2.7 GHz Mongoose M3 & 4x1.8 GHz Cortex-A55) - EMEAOcta-core (4x2.8 GHz Kryo 385 Gold & 4x1.7 GHz Kryo 385 Silver) - USA/LATAM, China
GPU :
Mali-G72 MP18 - EMEAAdreno 630 - USA/LATAM, China
Memory
Card Slot :
microSDXC (uses shared SIM slot) - dual SIM model only
Internal :
64GB 4GB RAM, 128GB 4GB RAM, 256GB 4GB RAM
UFS 2.1
Sound
Loudspeaker :
Yes, with stereo speakers
3.5mm Jack :
Yes
32-bit/384kHz audio
Tuned by AKG
Comms
WLAN :
Wi-Fi 802.11 a/b/g/n/ac, dual-band, Wi-Fi Direct
Bluetooth :
5.0, A2DP, LE, aptX
NFC :
Yes
Radio :
FM radio (USA & Canada only)
USB :
USB Type-C 3.1
Positioning :
GPS, GLONASS, BDS, GALILEO
Features
Sensors :
Iris scanner, fingerprint (rear-mounted), accelerometer, gyro, proximity, compass, barometer, heart rate, SpO2
ANT+
Bixby natural language commands and dictation
Samsung Pay (Visa, MasterCard certified)
Battery
Type :
Li-Ion 3000 mAh, non-removable (11.55 Wh)
Charging :
15W wired, QC2
Wireless (Qi) (market dependent)
Misc
Colors :
Midnight Black, Coral Blue, Titanium Gray, Lilac Purple, Burgundy Red, Sunrise Gold, Ice Blue
SAR EU :
0.36 W/kg (head) 1.18 W/kg (body)
Models :
SM-G960F, SM-G960, SM-G960F, SM-G960U, SM-G960W, SM-G9600, SM-G960U1, SM-G960N, SCV38, SM-G960X, SC-02K
SAR :
0.63 W/kg (head) 0.96 W/kg (body)
Price :
$ 129.00 / € 88.89 / £ 74.99
Main Camera
Features :
LED flash, auto-HDR, panorama
Video :
4K@30/60fps, 1080p@30/60/240fps, 720p@960fps, HDR, stereo sound rec., gyro-EIS & OIS (30fps)
Single :
12 MP, f/1.5-2.4, 26mm (wide), 1/2.55", 1.4µm, dual pixel PDAF, OIS
Selfie camera
Features :
HDR
Video :
1440p@30fps
Dual :
8 MP, f/1.7, 25mm (wide), 1/3.6", 1.22µm, AF
2 MP (dedicated iris scanner camera)
Tests
Performance :
AnTuTu: 250156 (v7)
GeekBench: 8830 (v4.4)
GFXBench: 14fps (ES 3.1 onscreen)
Display :
Contrast ratio: Infinite (nominal), 4.630 (sunlight)
Camera :
Photo / Video
Loudspeaker :
Voice 68dB / Noise 74dB / Ring 81dB
Battery (old) :
Endurance rating 78h
Audio quality :
Noise -93.4dB / Crosstalk -93.9dB
