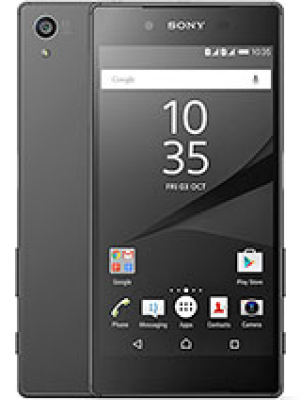

Sony Xperia Z5
Discontinued
154g, 7.3mm thickness
5.2" - 1080 x 1920 pixels
Android 5.1.1 (Lollipop), upgradable to 7.1.1 (Nougat)
Qualcomm MSM8994 Snapdragon 810 (20 nm)
32GB 3GB RAM
Li-Ion 2900 mAh, non-removable
18W wired, QC2
5.2" - 1080 x 1920 pixels
Android 5.1.1 (Lollipop), upgradable to 7.1.1 (Nougat)
Qualcomm MSM8994 Snapdragon 810 (20 nm)
32GB 3GB RAM
Li-Ion 2900 mAh, non-removable
18W wired, QC2
Launch
Announced :
2015, September 02. Released 2015, October 02
Status :
Discontinued
Network
Technology :
GSM / HSPA / LTE
Speed :
HSPA 42.2/5.76 Mbps, LTE Cat4 150/50 Mbps (E6603), LTE Cat6 300/50 Mbps (E6653)
2G bands :
GSM 850 / 900 / 1800 / 1900
3G bands :
HSDPA 850 / 900 / 1900 / 2100 - E6603, E6653
4G bands :
1, 2, 3, 4, 5, 7, 8, 12, 17, 20, 28, 38, 40 - E6603, E6653
Body
Dimensions :
146 x 72 x 7.3 mm (5.75 x 2.83 x 0.29 in)
Weight :
154 g (5.43 oz)
SIM :
Nano-SIM
Build :
Glass front, glass back, aluminum frame
IP68 dust tight and water resistant (immersible up to 1.5m for 30 min)
Display
Type :
IPS LCD
Size :
5.2 inches, 73.2 cm2 (~69.6% screen-to-body ratio)
Resolution :
1080 x 1920 pixels, 16:9 ratio (~428 ppi density)
Protection :
Scratch-resistant glass, oleophobic coating
Triluminos display
X-Reality Engine
Platform
OS :
Android 5.1.1 (Lollipop), upgradable to 7.1.1 (Nougat)
Chipset :
Qualcomm MSM8994 Snapdragon 810 (20 nm)
CPU :
Octa-core (4x1.5 GHz Cortex-A53 & 4x2.0 GHz Cortex-A57)
GPU :
Adreno 430
Memory
Card Slot :
microSDXC (dedicated slot)
Internal :
32GB 3GB RAM
eMMC 5.0
Sound
Loudspeaker :
Yes, with stereo speakers
3.5mm Jack :
Yes
24-bit/192kHz audio
Comms
WLAN :
Wi-Fi 802.11 a/b/g/n/ac, dual-band, Wi-Fi Direct, DLNA, hotspot
Bluetooth :
4.1, A2DP, aptX
NFC :
Yes
Radio :
FM radio, RDS
USB :
microUSB 2.0 (MHL 3 TV-out), OTG
Positioning :
GPS, GLONASS/ BDS (market dependant)
Features
Sensors :
Fingerprint (side-mounted; EU model only), accelerometer, gyro, proximity, compass, barometer
ANT+
Battery
Stand-by :
Up to 520 h (2G) / Up to 540 h (3G)
Talk time :
Up to 13 h 10 min (2G) / Up to 17 h (3G)
Music play :
Up to 87 h
Type :
Li-Ion 2900 mAh, non-removable
Charging :
18W wired, QC2
Misc
Colors :
White, Graphite Black, Gold, Green, Pink
SAR EU :
0.75 W/kg (head) 0.78 W/kg (body)
Models :
E6653, SO-01H, SOV32, E6603, 501SO
SAR :
0.55 W/kg (head) 0.64 W/kg (body)
Price :
About 150 EUR
Main Camera
Features :
LED flash, HDR, panorama
Video :
4K@30fps, 1080p@60fps, 720p@120fps, HDR
Single :
23 MP, f/2.0, 24mm (wide), 1/2.3", PDAF
Selfie camera
Single :
5.1 MP, f/2.4
Features :
HDR
Video :
1080p@30fps
Tests
Performance :
Basemark OS II 2.0: 1580Basemark X: 24941
Display :
Contrast ratio: 986 (nominal), 2.88(sunlight)
Camera :
Photo / Video
Loudspeaker :
Voice 65dB / Noise 62dB / Ring 66dB
Battery (old) :
Endurance rating 48h
Audio quality :
Noise -95.5dB / Crosstalk -94.8dB
