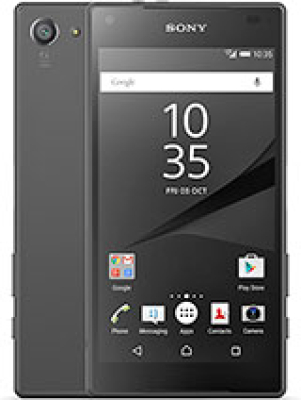

Sony Xperia Z5 Compact
Discontinued
138g, 8.9mm thickness
4.6" - 720 x 1280 pixels
Android 5.1.1 (Lollipop), upgradable to 7.1.1 (Nougat)
Qualcomm MSM8994 Snapdragon 810 (20 nm)
32GB 2GB RAM
Li-Ion 2700 mAh, non-removable
18W wired, QC2
4.6" - 720 x 1280 pixels
Android 5.1.1 (Lollipop), upgradable to 7.1.1 (Nougat)
Qualcomm MSM8994 Snapdragon 810 (20 nm)
32GB 2GB RAM
Li-Ion 2700 mAh, non-removable
18W wired, QC2
Launch
Announced :
2015, September. Released 2015, October
Status :
Discontinued
Network
Technology :
GSM / HSPA / LTE
Speed :
HSPA 42.2/5.76 Mbps, LTE Cat4 150/50 Mbps (E5803), LTE Cat6 300/50 Mbps (E5823)
2G bands :
GSM 850 / 900 / 1800 / 1900
3G bands :
HSDPA 850 / 900 / 1900 / 2100 - E5803, E5823
4G bands :
1, 2, 3, 4, 5, 7, 8, 12, 17, 20, 28, 38, 40 - E5803, E5823
Body
Dimensions :
127 x 65 x 8.9 mm (5.0 x 2.56 x 0.35 in)
Weight :
138 g (4.87 oz)
SIM :
Nano-SIM
Build :
Glass front, glass back, plastic frame
IP68 dust tight and water resistant (immersible up to 1.5m for 30 min)
Display
Type :
IPS LCD
Size :
4.6 inches, 56.9 cm2 (~68.9% screen-to-body ratio)
Resolution :
720 x 1280 pixels, 16:9 ratio (~323 ppi density)
Protection :
Scratch-resistant glass, oleophobic coating
Triluminos display
X-Reality Engine
Platform
OS :
Android 5.1.1 (Lollipop), upgradable to 7.1.1 (Nougat)
Chipset :
Qualcomm MSM8994 Snapdragon 810 (20 nm)
CPU :
Octa-core (4x1.5 GHz Cortex-A53 & 4x2.0 GHz Cortex-A57)
GPU :
Adreno 430
Memory
Card Slot :
microSDXC (dedicated slot)
Internal :
32GB 2GB RAM
eMMC 5.0
Sound
Loudspeaker :
Yes, with stereo speakers
3.5mm Jack :
Yes
24-bit/192kHz audio
Comms
WLAN :
Wi-Fi 802.11 a/b/g/n/ac, dual-band, Wi-Fi Direct, DLNA, hotspot
Bluetooth :
4.1, A2DP, aptX
NFC :
Yes
Radio :
FM radio, RDS
USB :
microUSB 2.0 (MHL 3 TV-out), OTG
Positioning :
GPS, GLONASS/ BDS (market dependant)
Features
Sensors :
Fingerprint (side-mounted; EU model only), accelerometer, gyro, proximity, compass, barometer
ANT+
Battery
Stand-by :
Up to 520 h (2G) / Up to 520 h (3G)
Talk time :
Up to 11 h 30 min (2G) / Up to 14 h 50 min (3G)
Music play :
Up to 77 h
Type :
Li-Ion 2700 mAh, non-removable
Charging :
18W wired, QC2
Misc
Colors :
White, Graphite Black, Yellow, Coral
SAR EU :
1.07 W/kg (head) 0.71 W/kg (body)
Models :
SO-02H, E5823, E5803
SAR :
0.97 W/kg (head) 0.72 W/kg (body)
Price :
About 200 EUR
Main Camera
Features :
LED flash, HDR, panorama
Video :
4K@30fps, 1080p@60fps, 720p@120fps, HDR
Single :
23 MP, f/2.0, 24mm (wide), 1/2.3", PDAF
Selfie camera
Single :
5.1 MP, f/2.4
Features :
HDR
Video :
1080p@30fps
Tests
Performance :
Basemark OS II 2.0: 1440Basemark X: 23703
Display :
Contrast ratio: 1053 (nominal), 2.78(sunlight)
Camera :
Photo / Video
Loudspeaker :
Voice 66dB / Noise 65dB / Ring 70dB
Battery (old) :
Endurance rating 86h
Audio quality :
Noise -95.9dB / Crosstalk -94.4dB
