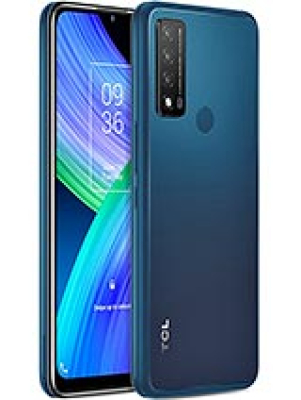

TCL 20 R 5G
Available. Released 2021, September 23
186g, 9mm thickness
6.52" - 720 x 1600 pixels
Android 11, TCL UI
Mediatek Dimensity 700 (7 nm)
64GB 4GB RAM, 128GB 4GB RAM
Li-Po 4500 mAh
10W wired
6.52" - 720 x 1600 pixels
Android 11, TCL UI
Mediatek Dimensity 700 (7 nm)
64GB 4GB RAM, 128GB 4GB RAM
Li-Po 4500 mAh
10W wired
Launch
Announced :
2021, September 07
Status :
Available. Released 2021, September 23
Network
Technology :
GSM / HSPA / LTE / 5G
Speed :
HSPA 42.2/11.5 Mbps, LTE Cat13 400/100 Mbps, 5G 2.7 Gbps DL
2G bands :
GSM 850 / 900 / 1800 / 1900
3G bands :
HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100
4G bands :
1, 3, 5, 7, 8, 20, 26, 28, 32, 38, 40, 41
5G bands :
1, 3, 5, 7, 8, 28, 40, 78 SA/NSA
Body
Dimensions :
164.3 x 75 x 9 mm (6.47 x 2.95 x 0.35 in)
Weight :
186 g (6.56 oz)
SIM :
Nano-SIMNano-SIM + Nano-SIM
Build :
Glass front, plastic frame, plastic back
Display
Type :
IPS LCD, 90Hz, 500 nits (peak)
Size :
6.52 inches, 102.6 cm2 (~83.3% screen-to-body ratio)
Resolution :
720 x 1600 pixels, 20:9 ratio (~269 ppi density)
Platform
OS :
Android 11, TCL UI
Chipset :
Mediatek Dimensity 700 (7 nm)
CPU :
Octa-core (2x2.2 GHz Cortex-A76 & 6x2.0 GHz Cortex-A55)
GPU :
Mali-G57 MC2
Memory
Card Slot :
microSDXC (uses shared SIM slot)
Internal :
64GB 4GB RAM, 128GB 4GB RAM
Sound
Loudspeaker :
Yes
3.5mm Jack :
Yes
Comms
WLAN :
Wi-Fi 802.11 a/b/g/n/ac, dual-band, Wi-Fi Direct
Bluetooth :
5.2, A2DP, LE
NFC :
Yes
Radio :
Unspecified
USB :
USB Type-C 2.0
Positioning :
GPS, GLONASS, GALILEO, BDS
Features
Sensors :
Fingerprint (rear-mounted), accelerometer, proximity, compass
Battery
Type :
Li-Po 4500 mAh
Charging :
10W wired
Misc
Colors :
Gray, Blue
Models :
T767H
Price :
About 180 EUR
Main Camera
Features :
LED flash, HDR, panorama
Video :
1080p@30fps
Triple :
13 MP, f/2.2, 27mm (wide) 1/3.0", 1.12µm, PDAF
2 MP, f/2.4, (depth)
2 MP, f/2.4, (macro)
Selfie camera
Single :
8 MP, f/2.0, 26mm (wide) 1/4.0", 1.12µm
Video :
1080p@30fps
