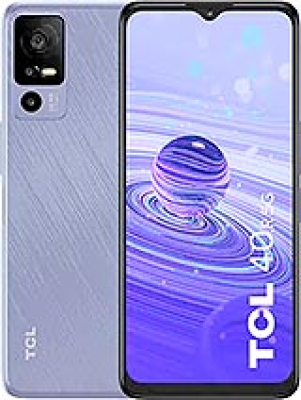

TCL 40R
Available. Released 2022, October 21
192g, 9mm thickness
6.6" - 720 x 1612 pixels
Android 12, TCL UI 4.0
Mediatek Dimensity 700 (7 nm)
64GB 4GB RAM, 128GB 4GB RAM
Li-Po 5000 mAh
15W wired
6.6" - 720 x 1612 pixels
Android 12, TCL UI 4.0
Mediatek Dimensity 700 (7 nm)
64GB 4GB RAM, 128GB 4GB RAM
Li-Po 5000 mAh
15W wired
Launch
Announced :
2022, October 26
Status :
Available. Released 2022, October 21
Network
Technology :
GSM / HSPA / LTE / 5G
Speed :
HSPA, LTE, 5G
2G bands :
GSM 850 / 900 / 1800 / 1900
HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100
3G bands :
HSDPA 850 / 900 / 1900 / 2100
4G bands :
LTE
5G bands :
1, 3, 5, 7, 8, 20, 28, 38, 40, 41, 78 SA/NSA - T771K, T771K1
Body
Dimensions :
164.5 x 75.4 x 9 mm (6.48 x 2.97 x 0.35 in)
Weight :
192 g (6.77 oz)
SIM :
Nano-SIMNano-SIM + Nano-SIM
Build :
Glass front, plastic frame, plastic back
Display
Type :
IPS LCD, 90Hz, 400 nits (typ)
Size :
6.6 inches, 104.6 cm2 (~84.4% screen-to-body ratio)
Resolution :
720 x 1612 pixels, 20:9 ratio (~267 ppi density)
Platform
OS :
Android 12, TCL UI 4.0
Chipset :
Mediatek Dimensity 700 (7 nm)
CPU :
Octa-core (2x2.2 GHz Cortex-A76 & 6x2.0 GHz Cortex-A55)
GPU :
Mali-G57 MC2
Memory
Card Slot :
microSDXC (uses shared SIM slot)
Internal :
64GB 4GB RAM, 128GB 4GB RAM
eMMC 5.1
Sound
Loudspeaker :
Yes
3.5mm Jack :
Yes
24-bit/192kHz Hi-Res audio
Comms
WLAN :
Wi-Fi 802.11 b/g/n
Bluetooth :
5.1, A2DP, LE
NFC :
Yes
Radio :
FM radio
USB :
USB Type-C 2.0
Positioning :
GPS, GLONASS, GALILEO, BDS
Features
Sensors :
Fingerprint (side-mounted), accelerometer, proximity, compass
Battery
Type :
Li-Po 5000 mAh
Charging :
15W wired
Misc
Colors :
Stardust Purple, Starlight Black
Models :
T771K, T771K1, T771H, T771A
Price :
About 240 EUR
Main Camera
Features :
LED flash, HDR, panorama
Video :
1080p@30fps
Triple :
50 MP, f/1.8, (wide), 1/2.76", 0.64µm, PDAF
2 MP, f/2.4, (macro)
2 MP, f/2.4, (depth)
Selfie camera
Single :
8 MP, f/2.0, (wide), 1/4.0", 1.12µm
Video :
1080p@30fps
