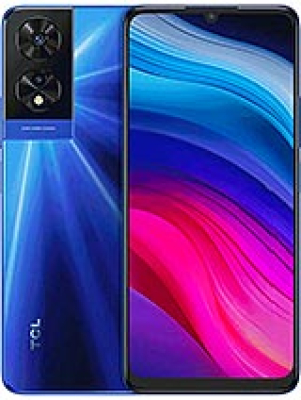

TCL 505
Available. Released 2024, March
190g, 8.3mm thickness
6.75" - 720 x 1600 pixels
Android 14
Mediatek Helio G36 (12 nm)
64GB 4GB RAM, 128GB 4GB RAM
5010 mAh
10W wired
6.75" - 720 x 1600 pixels
Android 14
Mediatek Helio G36 (12 nm)
64GB 4GB RAM, 128GB 4GB RAM
5010 mAh
10W wired
Launch
Announced :
2024, February 06
Status :
Available. Released 2024, March
Network
Technology :
GSM / HSPA / LTE
Speed :
HSPA, LTE
2G bands :
GSM 850 / 900 / 1800 / 1900
3G bands :
HSDPA 850 / 900 / 1900 / 2100
4G bands :
1, 3, 5, 7, 8, 20, 26, 28, 38, 40, 41
Body
Dimensions :
168.3 x 76.7 x 8.3 mm (6.63 x 3.02 x 0.33 in)
Weight :
190 g (6.70 oz)
SIM :
Nano-SIMNano-SIM + Nano-SIM
Display
Type :
IPS LCD, 90Hz, 400 nits (typ)
Size :
6.75 inches, 110.0 cm2 (~85.2% screen-to-body ratio)
Resolution :
720 x 1600 pixels, 20:9 ratio (~260 ppi density)
Platform
OS :
Android 14
Chipset :
Mediatek Helio G36 (12 nm)
CPU :
Octa-core (4x2.2 GHz Cortex-A53 & 4x1.6 GHz Cortex-A53)
GPU :
PowerVR GE8320
Memory
Card Slot :
microSDXC (dedicated slot)
Internal :
64GB 4GB RAM, 128GB 4GB RAM
eMMC 5.1
Sound
Loudspeaker :
Yes, with stereo speakers
3.5mm Jack :
Yes
Comms
WLAN :
Wi-Fi 802.11 a/b/g/n/ac, dual-band, Wi-Fi Direct
Bluetooth :
5.1, A2DP, LE
NFC :
Yes (market/region dependent)
Radio :
FM radio
USB :
USB Type-C 2.0, OTG
Positioning :
GPS, GLONASS, GALILEO, BDS
Features
Sensors :
Fingerprint (side-mounted; market/region dependent), accelerometer
Virtual proximity sensing
Battery
Type :
5010 mAh
Charging :
10W wired
Misc
Colors :
Ocean Blue, Space Grey
Main Camera
Dual :
50 MP, f/1.8, 26mm (wide), 1/2.55", 0.7µm, PDAF
2 MP, f/2.4, (depth)
Features :
LED flash, HDR, panorama
Video :
1080p@30fps
Selfie camera
Single :
5 MP, f/2.2, 27mm (wide), 1/5.0", 1.12µm
Video :
1080p@30fps
